Spring 2017 Prosthetic Arm: Final Document

The Robot Company | CEO Professor Gary Hill

Blog Post Created by Project Manager | Bianca Esquivel

Mission, Systems, and Test Engineer | Phuong Tran Electronics and Control Engineer | Mikael Movsisyan

Design and Manufacturing | Cedric Yannick Mbetga

Executive Summary

By Project Manager | Bianca Esquivel

Project Objective

There are 3 main project objectives that address the problem of the customer being born without a right arm and cater to his preferred recreational activities:

  1. Being able to operate a computer mouse by supporting and rotating the wrist that joins the prosthetic hand to the prosthetic arm.
  2. Being able to pick up and drink a cup of water by allowing for proper wrist rotation and supporting the weight of both the prosthetic hand and the cup of water.
    1. Ability to hold more than 8 oz. of water is a plus.
  3. Being able to pick up and eat a chips ahoy cookie by allowing for proper wrist rotation and supporting the weight of both the prosthetic hand and the cookie.

Mission Profile

Mission Profile from Start to Finish:

  • Customer will sit down at a desk in front of a computer with a cup of water and a plate of cookies within the reach of his prosthetic arm
  • The computer will have a game of minesweeper ready to play
  • With the prosthetic arm he will be able to rotate his wrist to properly operate the mouse to play a game of minesweeper and be able to reset the game should he lose or restart the game should he win
  • He will be able to rotate his wrist in order to properly take hold of the cup of water within his reach to drink from at his leisure
  • He will be able to rotate his wrist in order to properly take hold of a chips ahoy cookie within his reach to eat one at a time at his leisure

The Design

  • Switch used to power the arm and hand on/off
  • Comfortable cuff fit for the customer
  • Room for PCB, Battery, and MCU in the limited space of the forearm
  • Room for the servo to rotate the wrist

Prosthetic Arm Design Image

Project Features

  • Wrist Rotation of 90 degrees
  • Personally designed to match the customer’s arm measurements
  • Comfortable arm attachment, unlike the over the shoulder strap that was often used before
  • PLA Material due to project budget
  • EMG (Electromyography) Sensor used to control the movement of the wrist
  • Most of our parts are off the shelf products to keep the budget low, while still keeping the form factor of the prosthetic arm

System Design

By Mission, Systems, and Test Engineer | Phuong Tran

System Design: Mechanical Perspective

Gray: Humeral Suspension Cuff

Red: Upper Forearm

Yellow: Lower Forearm

Green: Wrist

System Design: Electrical Perspective

Electronics Design

By Electronics and Control Engineer | Mikael Movsisyan

Buck Converter

LTSpice Simulation Buck Converter

Electronics Custom Parts

LT3971-5 Buck Converter from Linear Technology

Purpose:

  • To satisfy L2.2.1 – Wrist Motion
  • To step down 11.1V to 5V

Rationale:

  • Running current MG996R: 500-900mA (from datasheet)
  • Arduino Micro 5V pin rated 200mA
  • VCC fluctuations (Appendix 1.)
  • Voltage regulators (LM7805) tend to overheat

Reason for specified IC:

  • Relatively cheap
  • >1V logic (Enable Pin)
  • LTSpice simulation showed constant 5V output up to 1.2A

TI’s LM34 Temperature Sensor

Purpose:

  • To satisfy L2.4.1 Safety – Temperature
  • Measure analog temperature proportional to Fahrenheit

Rationale:

  • Above threshold analog input from sensor will cause MCU to power-down

Reason for specified IC:

  • Can measure required temperature 50oC i.e. 122F (Appendix 4)
  • Used through-hole component in 370L
  • Ease of use

GRS-4011 Switch

Purpose:

  • To satisfy L2.4.2 Safety – Kill Switch
  • Switch off supply to MCU (Appendix??)

Rationale:

  • User can manually shut-down prosthetic arm

Reason for specified component:

  • Available at hand
  • Current/Voltage rating 16A/125V

Sparkfun’s 2 DOF IMU with ADXL203 Accelerometer

Purpose:

  • To satisfy requirement from Con Ops
  • To measure orientation

Rationale:

  • Wrist can only turn in specified orientation (Appendix 3)

Reason for component:

  • Available in inventory
  • Analog outputEase of use

TowerPro MG996R Servo

Purpose:

  • To satisfy L2.2.2. Motion

Reason for component:

  • Trade-off-Study
  • Load Test
Firmware: Main Program

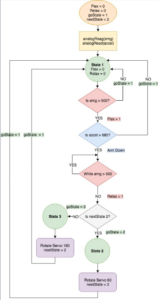

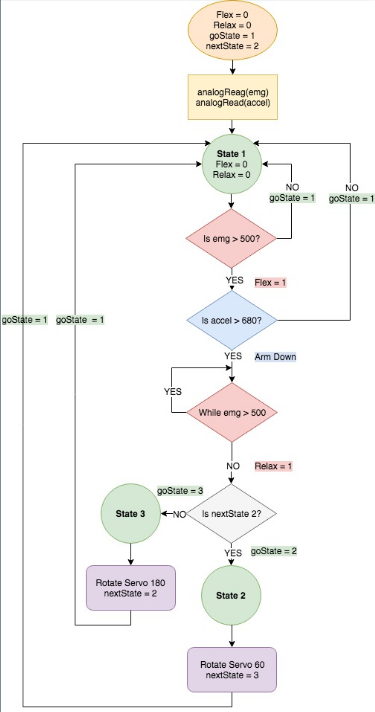

Firmware Flow Chart

FSM States Overview

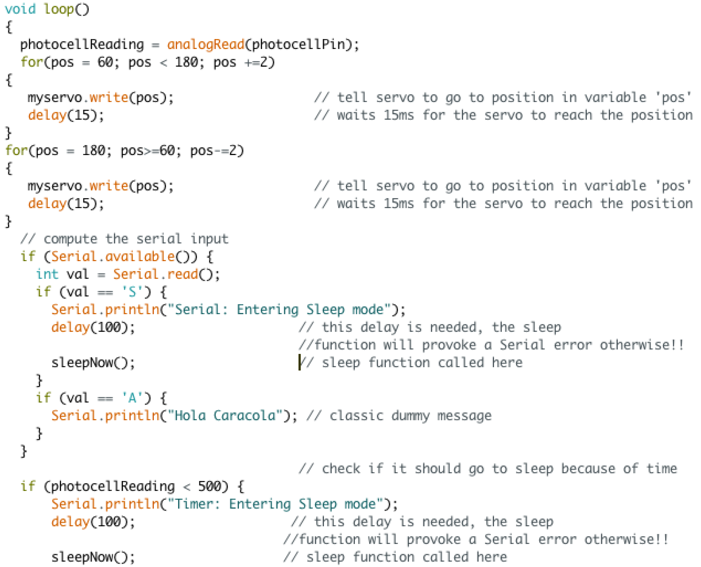

Sleep Interrupt Firmware

Sleep Interrupt Flow Chart

PCB Schematic

Original Design Components

  • Arduino Micro
  • LM34 Temperature Sensor
  • MyoWare EMG Sensor

Unspecified components

  • Servo
  • Switch
  • LiPo Battery

Added Components

  • Buck Converter
  • IMU

Prosthetic Arm Fritzing Diagram

Breadboard Model

  • Rapid prototyped 3D design
  • MyoWare EMG sensor & IMU analog readings are used to control servo
  • Light-dependent voltage divider simulates analog reading from a temperature sensor. Used with sleep ISR to power-down MCU.

Rapid Prototype Breadboard Layout

Eagle CAD Schematic

PCB Layout

Hardware Design

Attachment Module

In order to meet the following requirement

  • L1-1 – Attachment
  • L2-1-Mass Management
  • L2-1-2- over shoulder strap

The module shown in figure below was created and modeled after the patented humeral cuff displayed below. Most of these parts were designed in solidworks and printed out. However the ¼ metal rods for the humeral cuff were purchased.

Solidworks Annotated 3D Exploded View

Solidworks Annotated Attachment Module

Humeral Suspension Cuff Module

Humeral Suspension Cuff Mounted on Socket

Cuff Sitting on Humerus Bone

Wrist Rotation Mechanical Design

The rotation of the wrist is controlled by the servo MG996R which was located in the lower arm. The 90 degree turn (L2-2-1 requirement) of the wrist was met by applying the appropriate gear ration of 17/11= 1.55.

Two gears are designed:

  • Driven gear with 17 teeth
  • Driver gear with 11 teeth

To avoid the prosthetic hand wire bundle hanging out of the arm, a hole was drawn through the driven gear such that the bundle could travel through it.

Driven Gear and Driver Gear

Servo Used

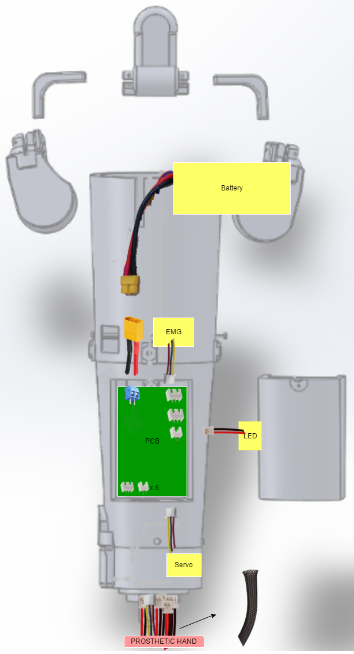

Cable Tree Hand & Arm Integration

Mechanical Connection

The prosthetic arm was assembled after final printing. This will be done using M3 screw and hex nuts. Hence hex houses were modeled in solidworks to house these nuts. Some of the advantages of these houses are that they:

  • Allow assembly with less maneuvering
  • Allow for easier disassembly of the parts
  • Are a better fastening method

In addition, the the wrist is modeled in a way that allows the prosthetic hand to attach to the prosthetic arm via screws

Hex Nut House

Solidworks Final Wrist Design

System Resource Reports

by Mission, Systems, and Test Engineer | Phuong Tran

Power Allocation

Mass Allocation

Cost Allocation

Burndown

by Project Manager | Bianca Esquivel

Project Resources

Project Video: Prosthetic Limb 2017 Project Video

CDR PowerPoint: Prosthetic Arm CDR PPT

PDR PowerPoint: Prosthetic Arm PDR PPT

Project Libre & Excel Burndown: Prosthetic Limb Schedule & Burndown

Verification & Validation Report: V&V Prosthetic Arm

Solidworks Files: Mechanical Blog Post 1Mechanical Blog Post 2Mechanical Blog Post 3

Eagle CAD Files: Electrical Blog Post

Arduino Code: Software Blog Post

The Entire 400D Prosthetic Limb Folder: Prosthetic Limb 2017 Group Folder
