By:

Peiyuan Xu (Project Manager)

Approved by Peiyuan Xu (Project Manager)

Approved by Xiong Lee (System Engineer)

Executive Summary

Project Objectives

The spring 2016 Pathfinder Rover was inspired by NASA’s MARs Exploration Rover-“Sojourner”. The profile for this semester’s project is to imitate the design of “Sojourner” Rover to prototype a new generation of Pathfinder Rover that implements the Rocker Bogie Suspension System as well as being self-sufficient by using solar panels. The Pathfinder is allowed to have the solar panels charging the battery for up to 8 hours during the day time. Then the customer can spend up to 4 hours at night walking and exploring with the Pathfinder. Ultimately, The customer can use Arxterra control panel on the PC to navigate the Rover by using the cursor to click a point on the map. This generation of Pathfinder Rover is also designed to test and implement SLAM (Simultaneous Localization and Mapping) technology for autonomous vehicles.

Mission Profile:

                                                             Figure 1 – CSULB WiFi Strength map

Since our Pathfinder Rover will be tested at the entire CSULB campus. We need to find out where there is the best Wi-Fi signal  in order to gain the stable video stream from the android phone to the Arxterra. The system engineer Xiong Lee was able to use an android App called Wi-Fi Maximiser to map out the  Wi-Fi signal strength around CSULB campus.  Based on the strength of the Wi-Fi signal, our mission will be narrowed down to the area covered with green on the map. We suggest the customer not to go through the area covered with red because there might be some packet loss and signal lag around the area. We also think this Wi-Fi signal strength map can be useful for other EE 400D project in which case they need to explore the CSULB campus as well.

The changes that made to the Mission Profile and Project Objective can be found here:

Spring 2016 Pathfinder: Mission Profile and Project Objective Update

Design

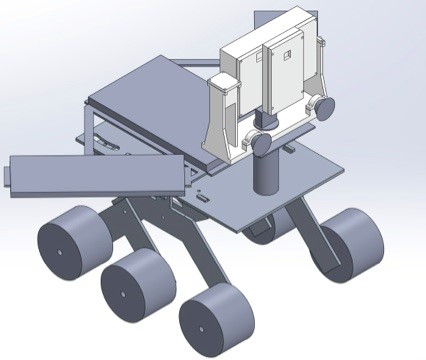

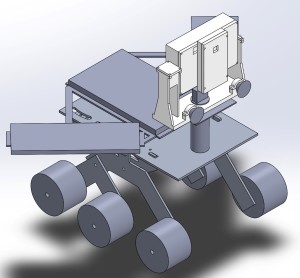

                                                                      Figure 2 – 3D Model

The image above is the 3D illustration in SolidWorks that shows the overall design of the pathfinder.

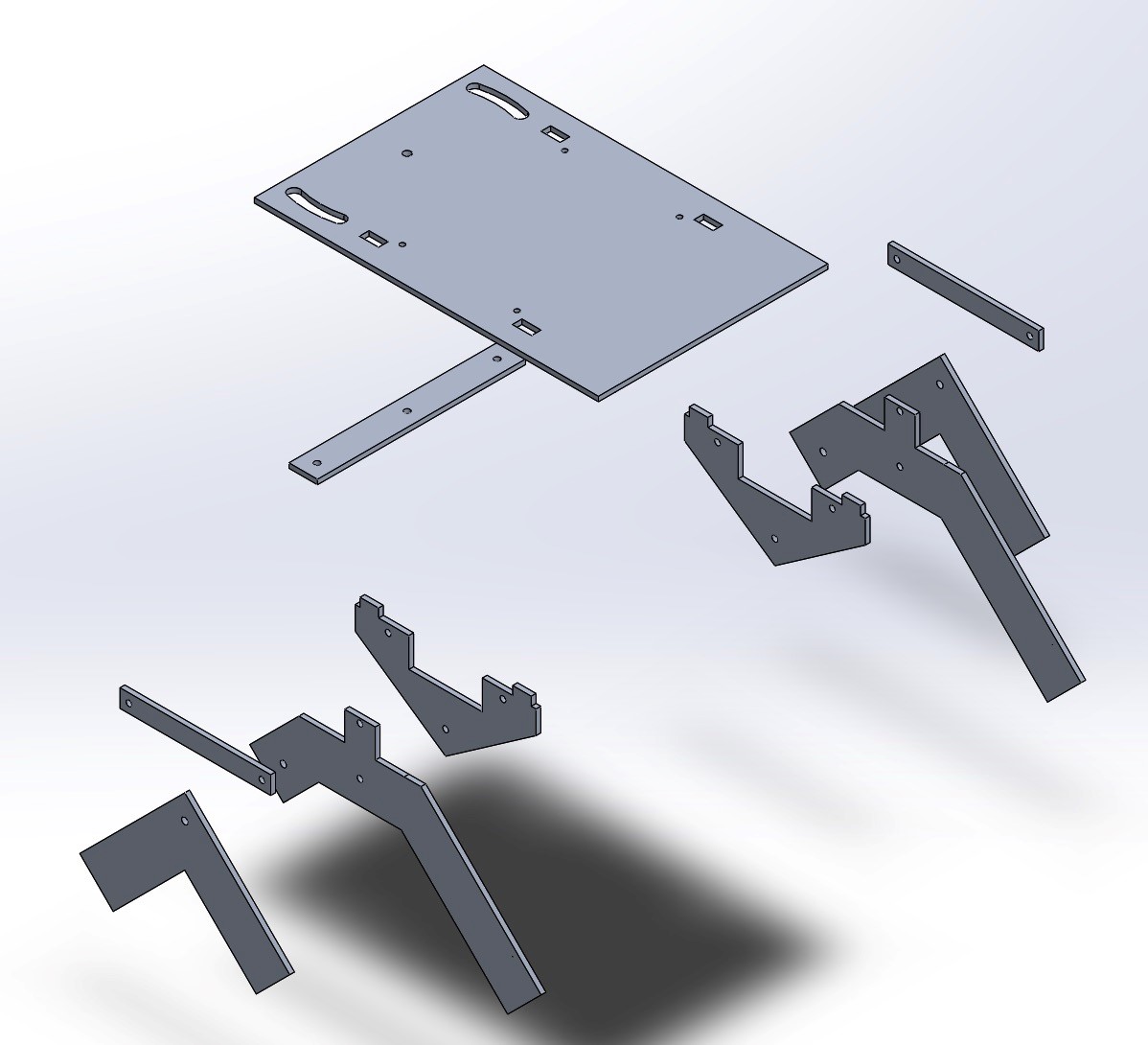

                                                                Figure 3 – Exploded Model

This image above gives the exploded view of the Project design. On the top is the Tilt system with the encasement for Google Tango tablet and Android Phone. Below that are the 3 solar panels with resemble the shape of the Arxterra logo. Then there is a metal box to protect all the electronic components. Following that is our new chassis with Rocker Bogie System.

For more details on the structures of this design, refer to:

Spring 2016 Pathfinder Design and Manufacturing – Rocker Bogie Suspension System Design

Spring 2016 Pathfinder Design and Manufacturing – Tilt System Finalized Design

Project Features:

Rocker Bogie Suspension System

• Designed for superior vehicle stability on the uneven surface
• Obstacle-Climbing Capability
• High-clearance chassis
• Slow-speed application

                                                                 Figure 4 – Rocker Bogie System

New Tilt system for Tango tablet and Android Phone

• Has two servos. One controls Pan system, one controls Tilt system
• Allow stream video from Android Phone correlates with Point Cloud data in Google Tango tablet
• Protect the phone and Tango tablet

                                                                       Figure 5 – Tilt System

Solar Panels

• Self-sufficient
• Use three pieces of solar panels to resemble the Arxterra logo

                                                                    Figure 6 – Solar Panels

SLAM  (Project Tango Modules)

Access to the Point Cloud Data (send data out via Tango Bluetooth API)

Use Depth perception and IMU sensors to navigate Pathfinder go where the user wants to go (Developing)

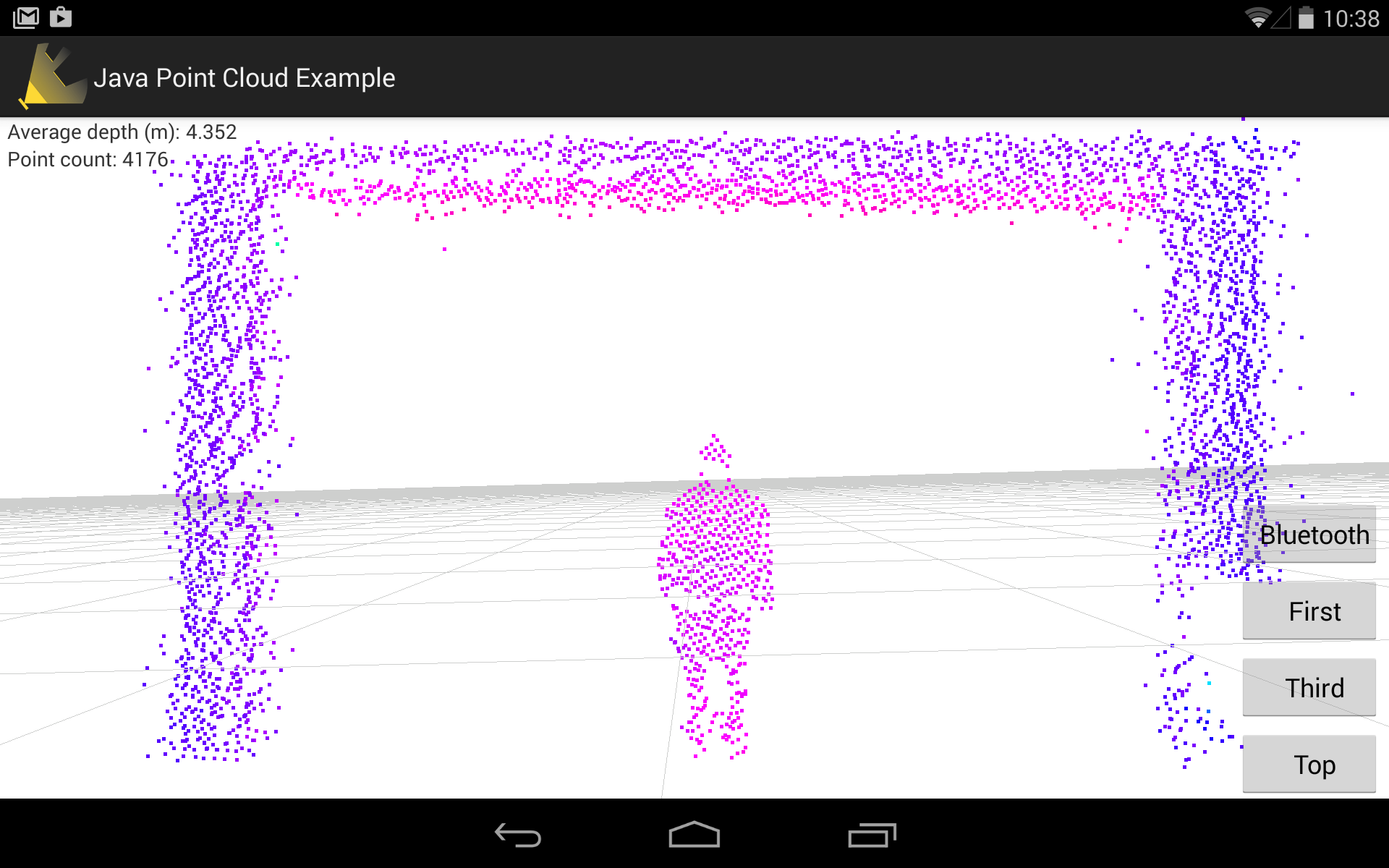

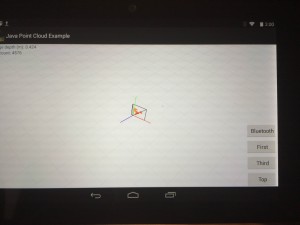

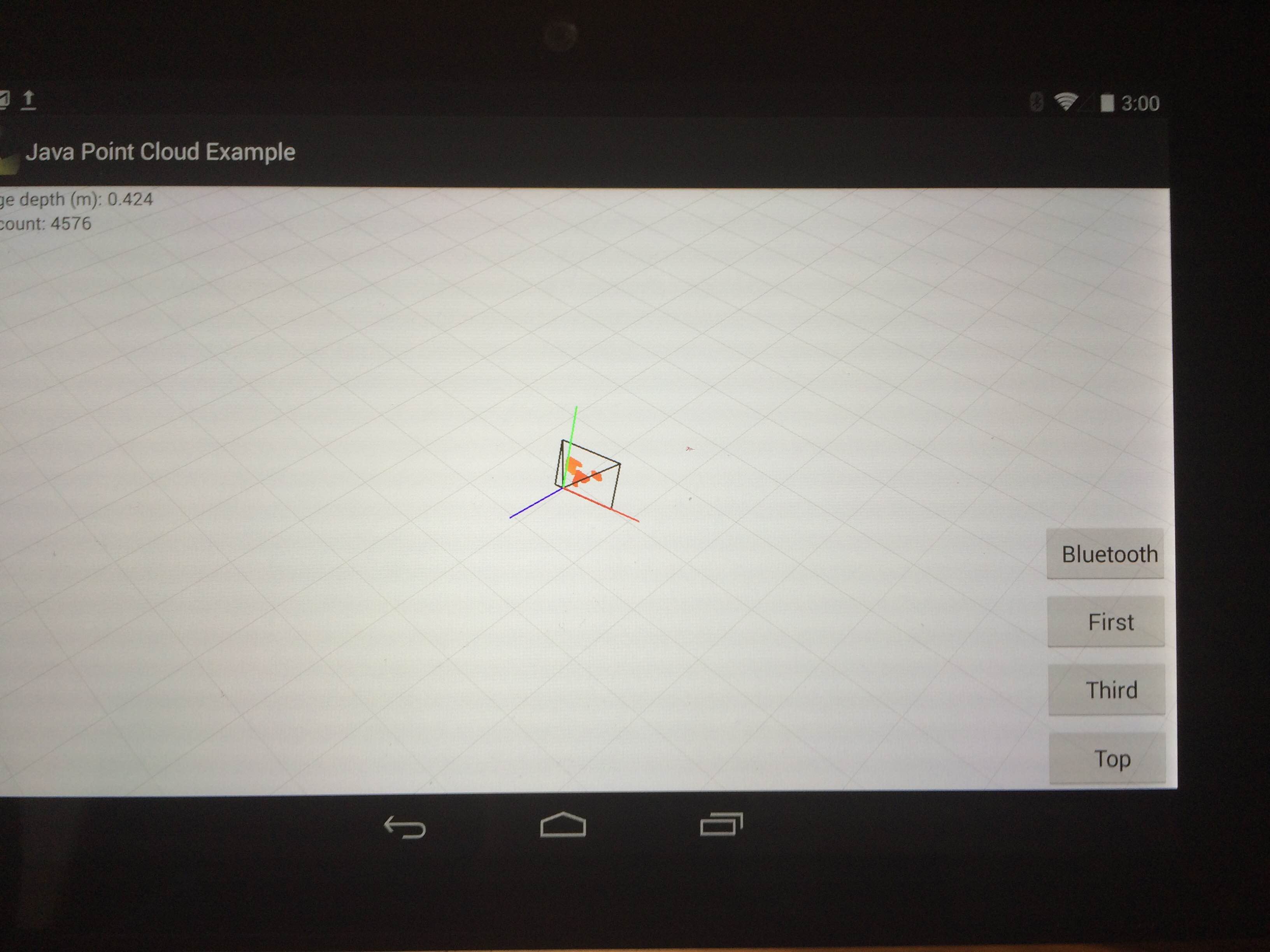

                                                                 Figure 7 – Point Cloud App

System Design

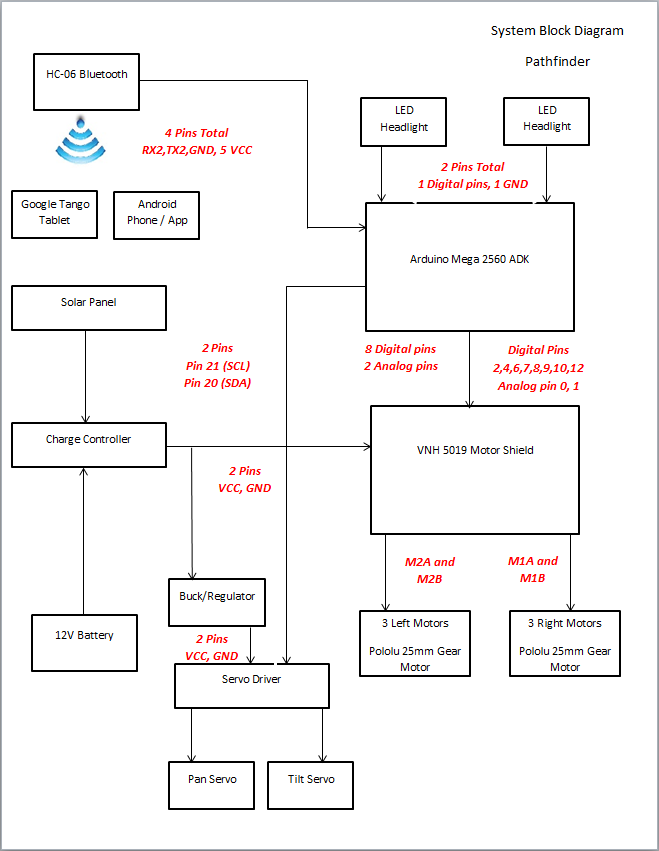

                                                            Figure 8 – System Block Diagram

The system block diagram above shows how all of the components interface with each other. First, transmission of data from an android phone or the Arxterra control panel via HC-06 Bluetooth module will tell the Arduino Mega what to do. The Arduino Mega will interpret this data and send it out through the motor shield or servo driver to drive the pathfinders movement. The system block diagram also depicts how the charge controller will interface the power supply and the solar panels to the VHN5019 Motor shield that will drive the pathfinder.

For more information about the system design, refer to:

Spring 2016 Pathfinder: System Block Diagram & Interface Matrix

Experimental Results:

Current Drawn By Motors

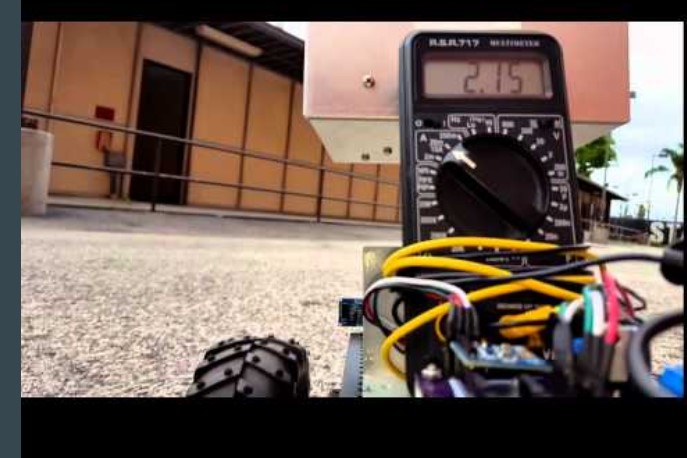

                                                         Figure 9 – Current Drawn Test

The purpose of this test is to find the current drawn by the motors on different terrains and in different driving modes (Braking abruptly, Rotating (Under High Stress) and Running forward/backward (Normal Driving) . This test is crucial for us to gain the discharging time of the batteries in order to meet the Level 1 requirement of constantly running for 4 hours.

For Project Level 1 requirements, refer to:

http://arxterra.com/spring-2016-pathfinder-preliminary-project-plan/

Results:

Peak current: 4.8 A (Under highest stress)

-Ex. braking abruptly, rotating, etc

Average current: 1.2 A (Normal driving)

Theoretical discharge time:

20 Ah / 4.8 A = 4.16 hours (high stress)

20 Ah/ 1.5 A = 13.33 hours (normal driving)

Actual Discharge time to 50% : 6.5 hours

This test is conducted for the Wild Thumper chassis

Video Demo

For more information about this current drawn test, refer to:

Spring 2016 Pathfinder: Current Drawn Test

Charging Batteries Using Solar Panels

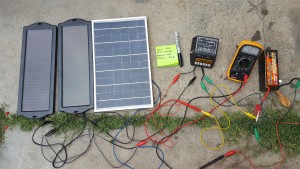

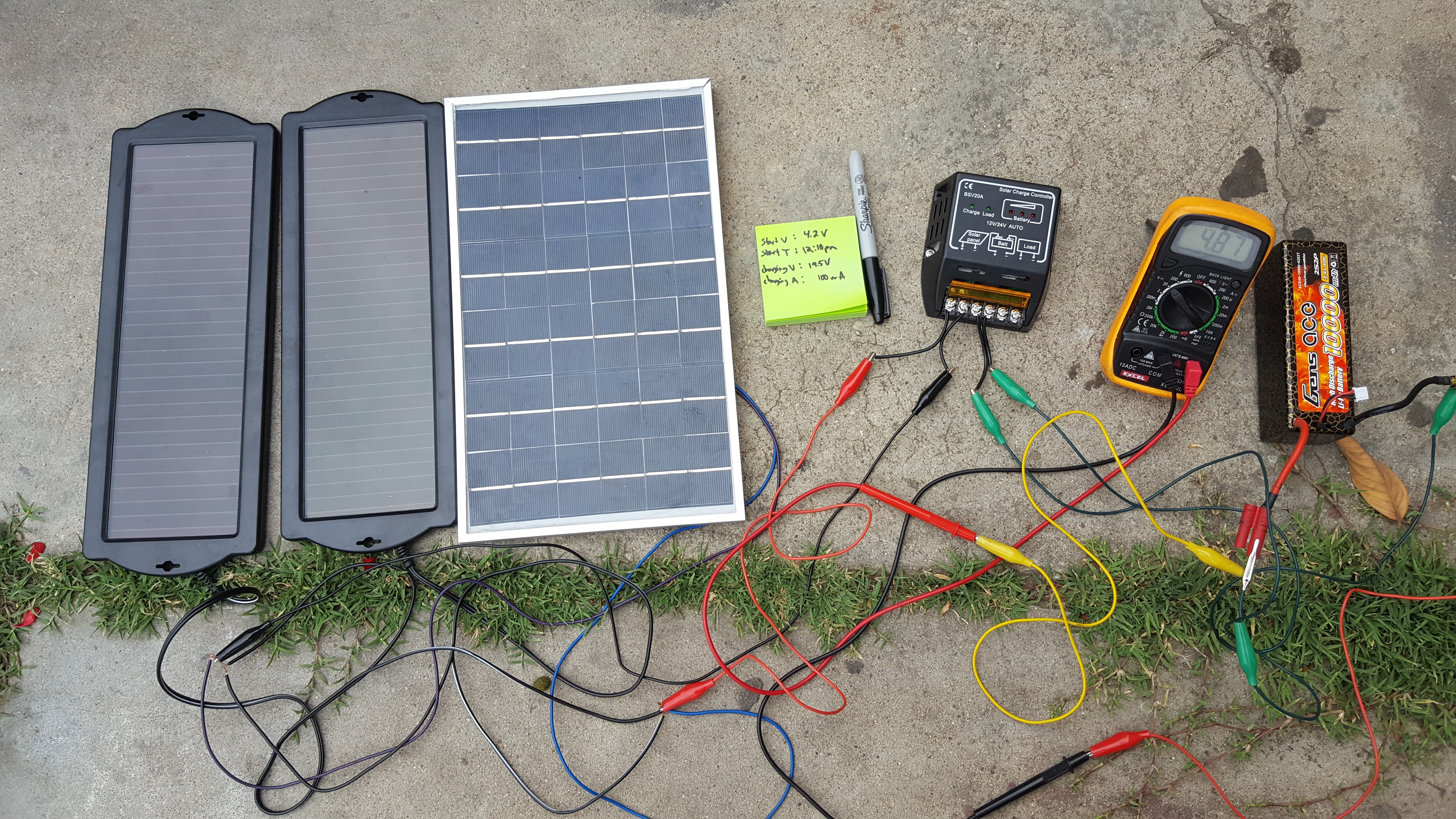

                                                         Figure 10 – Solar Panels charging the batteries

The project objective stated that the pathfinder needs to be self-sufficient by using solar panels. This test is to measure the total current the solar panels can supply at direct sunlight. In reality, the charging capability of solar panels will vary depends on the weather condition, therefore, we include some of the other tests for comparison of the worst case scenario.

Results:

-Direct sunlight: 850 – 950 mA

-Shady area: 500 – 750 mA

-Rain or cloudy: 100 – 300  mA

•  Important note (current supply  by the solar panel  determine the time required  to  charge the battery )
• After charging these batteries in direct sunlight for 8 hours, the voltage level of the batteries increased from 4.0 V to 6.5V which is from 54% to 87%.
• This would meet our Level 1 requirement since it takes around 6 hours of normal conditions run time to deplete our batteries from 7.4 V to 3.4 V.

For more information on how we implement solar panels, refer to:

Spring 2016 Pathfinder Solar Panels Implementation

Project Tango Modules

                                                        Figure 11 – Project Tango: Point Cloud

This spring 2016 Pathfinder project used Google’s Project Tango as a platform to test and implement SLAM (Simultaneous Localization and Mapping) technology for autonomous vehicles. Project Tango uses computer vision to give device the ability to know the position in the relative 3D space as well as the distance from the surrounding objects to the device itself.

For more research work of the Project Tango, refer to:

Spring 2016 Pathfinder: Project Tango Preliminary Research

For more details of the project Tango modules our team accomplished or attempted, refer to:

Spring 2016 Pathfinder: Project Tango Bluetooth API

Spring 2016 Pathfinder: Project Tango – Interactive Visualization of data from Tango using Paraview

Spring 2016 Pathfinder: Project Tango Module#5 – Android to Arduino Via Bluetooth

Subsystem Design

Interface Definition

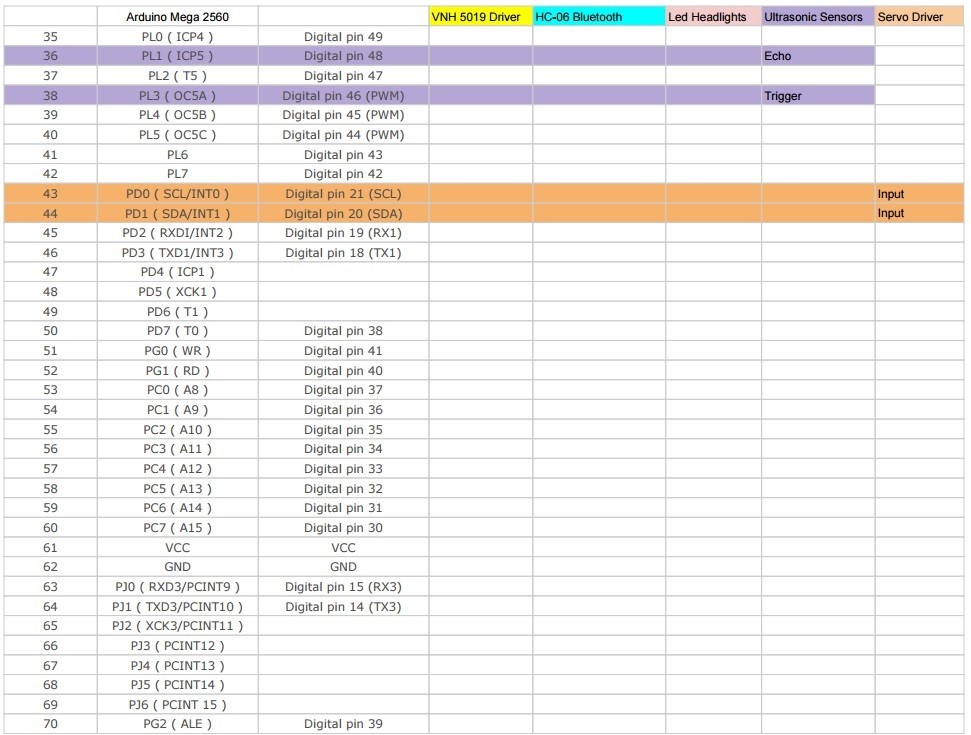

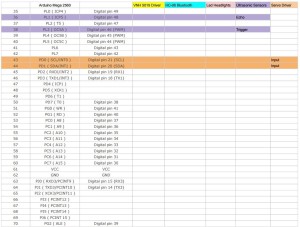

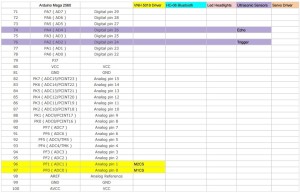

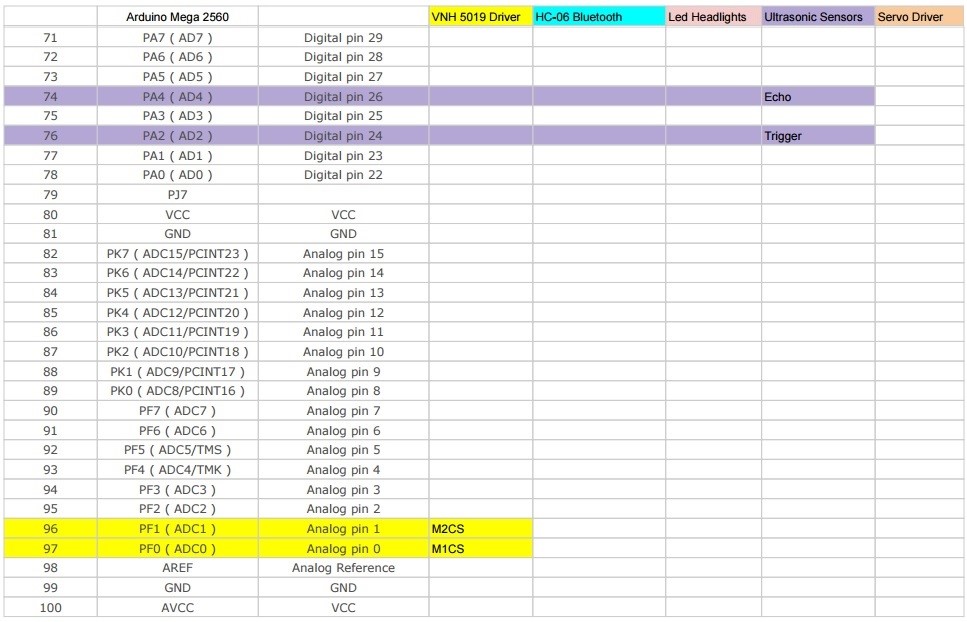

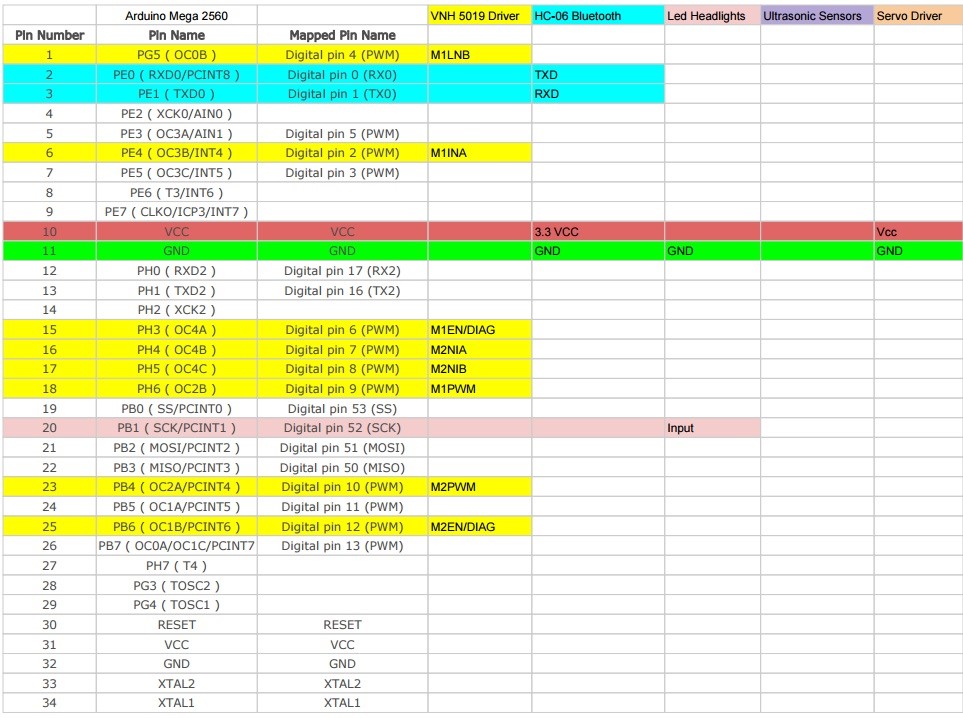

                                                           Figure 12 – Interface Matrix

The above interface matrix shows in depth on which pins are used on the Arduino Mega.

For further details on interface matrix, refer to:

Spring 2016 Pathfinder: System Block Diagram & Interface Matrix

One improvement we had after PDR debrief was to highlight the rows and columns with different colors in the interface matrix. Each color represents the corresponding pins used by the component. That makes it a lot easier for us to track the subsystem level pinouts. Also this makes it easy for audience to see during the presentation.

Custom PCB Design

Fritzing Diagram

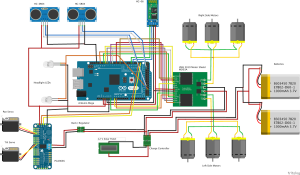

                                                           Figure 13 – Fritzing Diagram

Breadboard

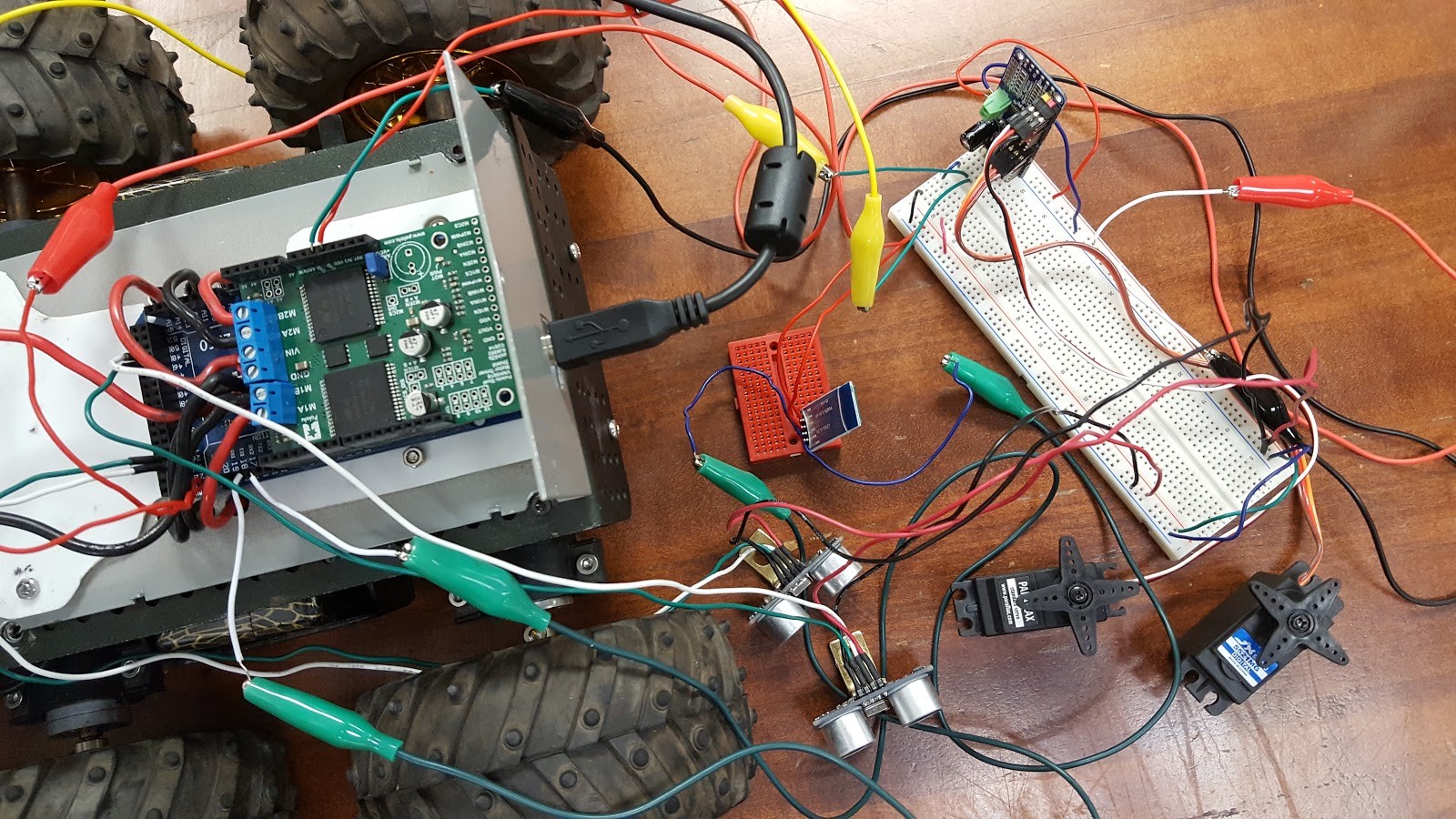

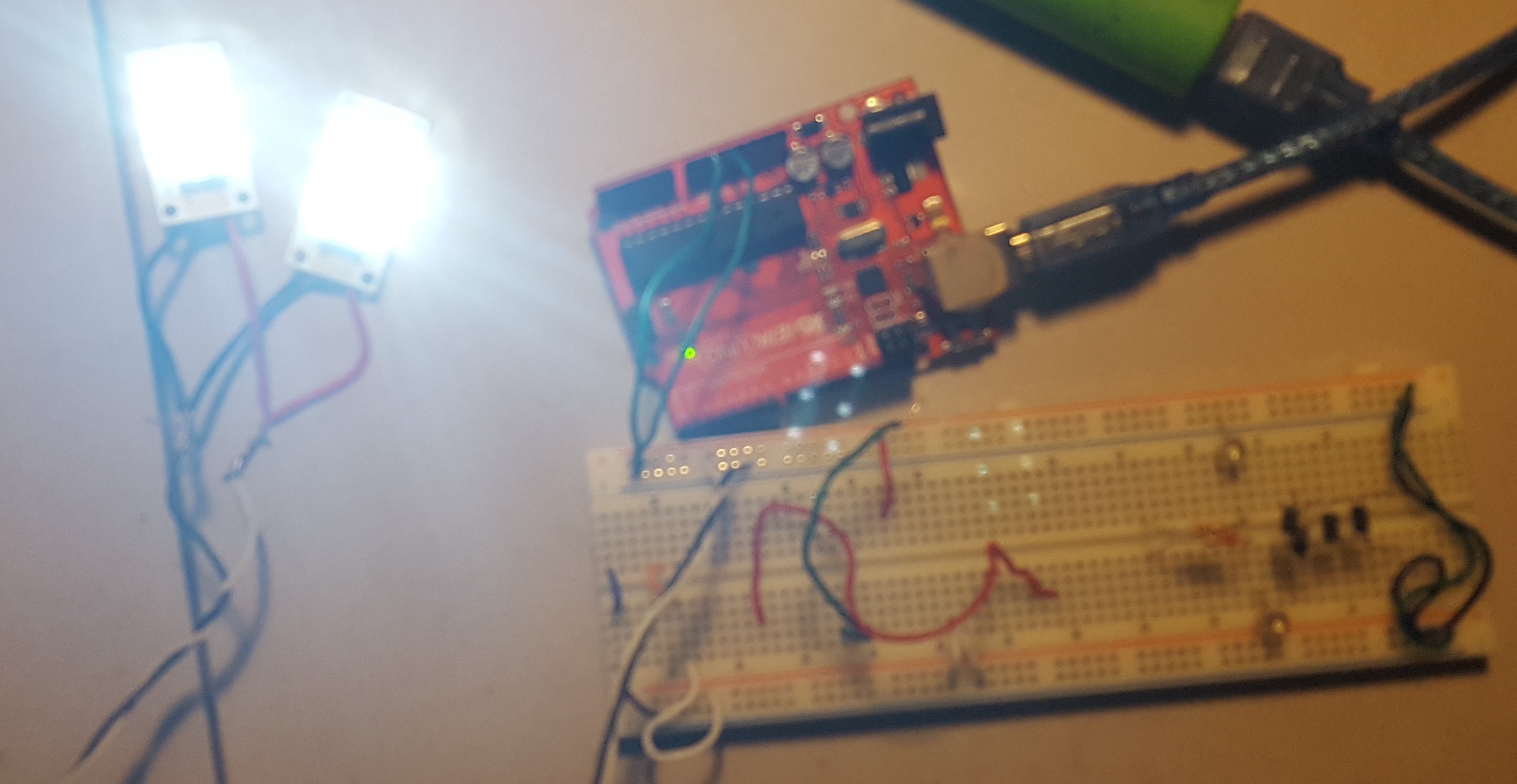

                                                            Figure 14 – Breadboard

PCB Schematic

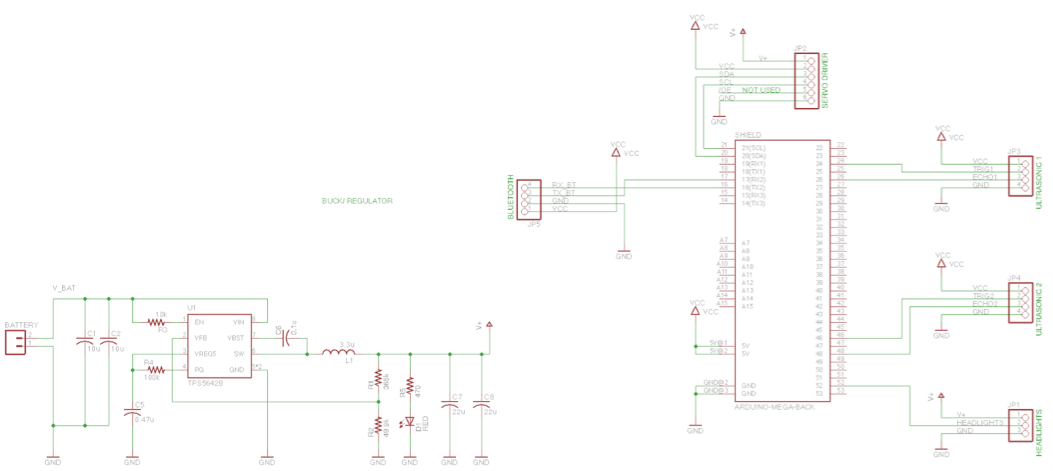

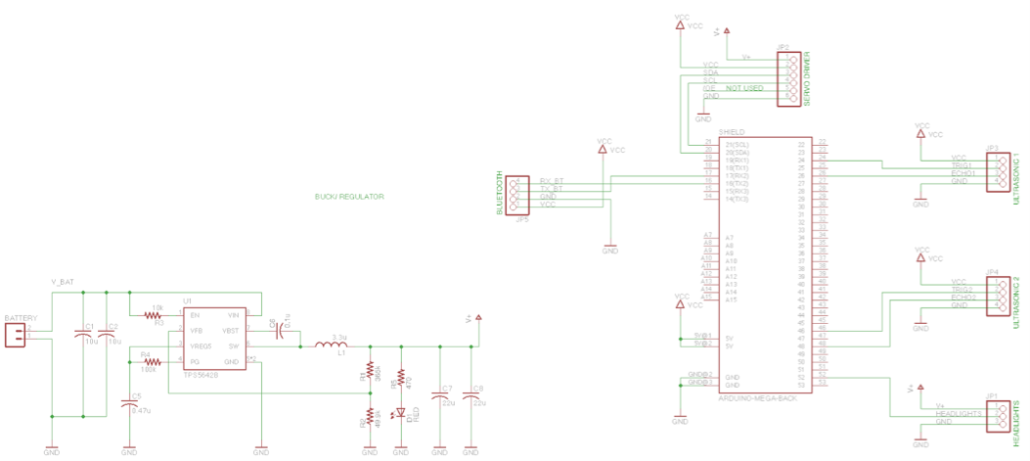

                                                              Figure 15 – PCB System Schematic

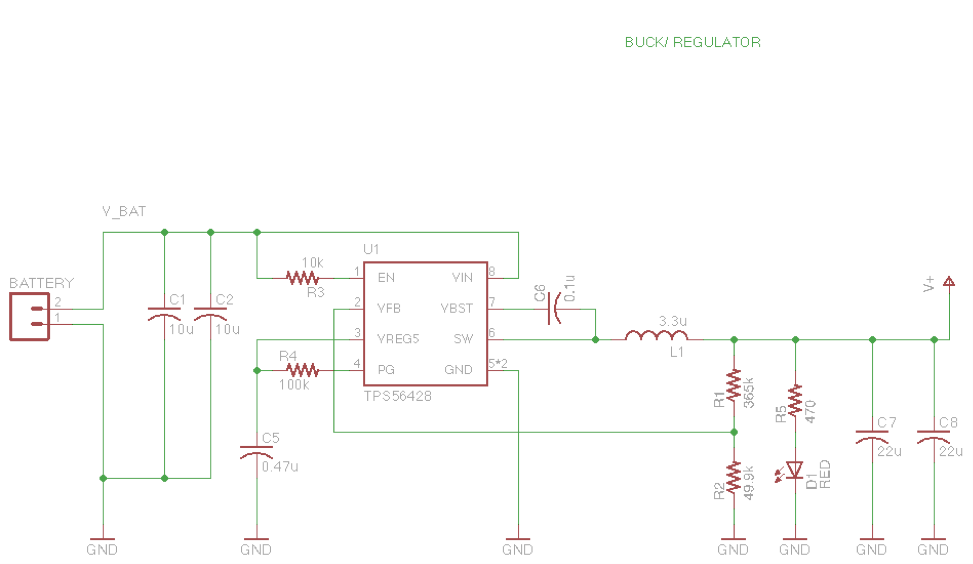

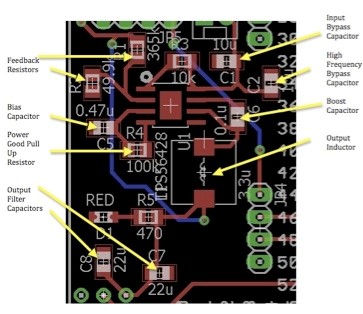

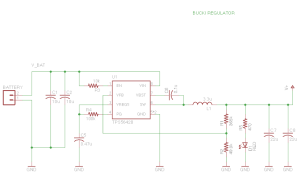

                                                                Figure 16 – Buck Regulator

PCB Layout

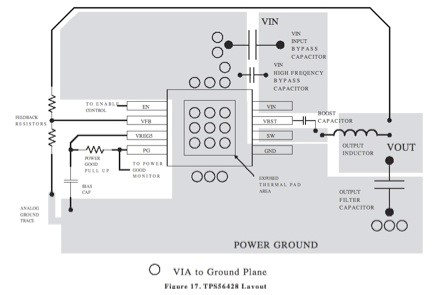

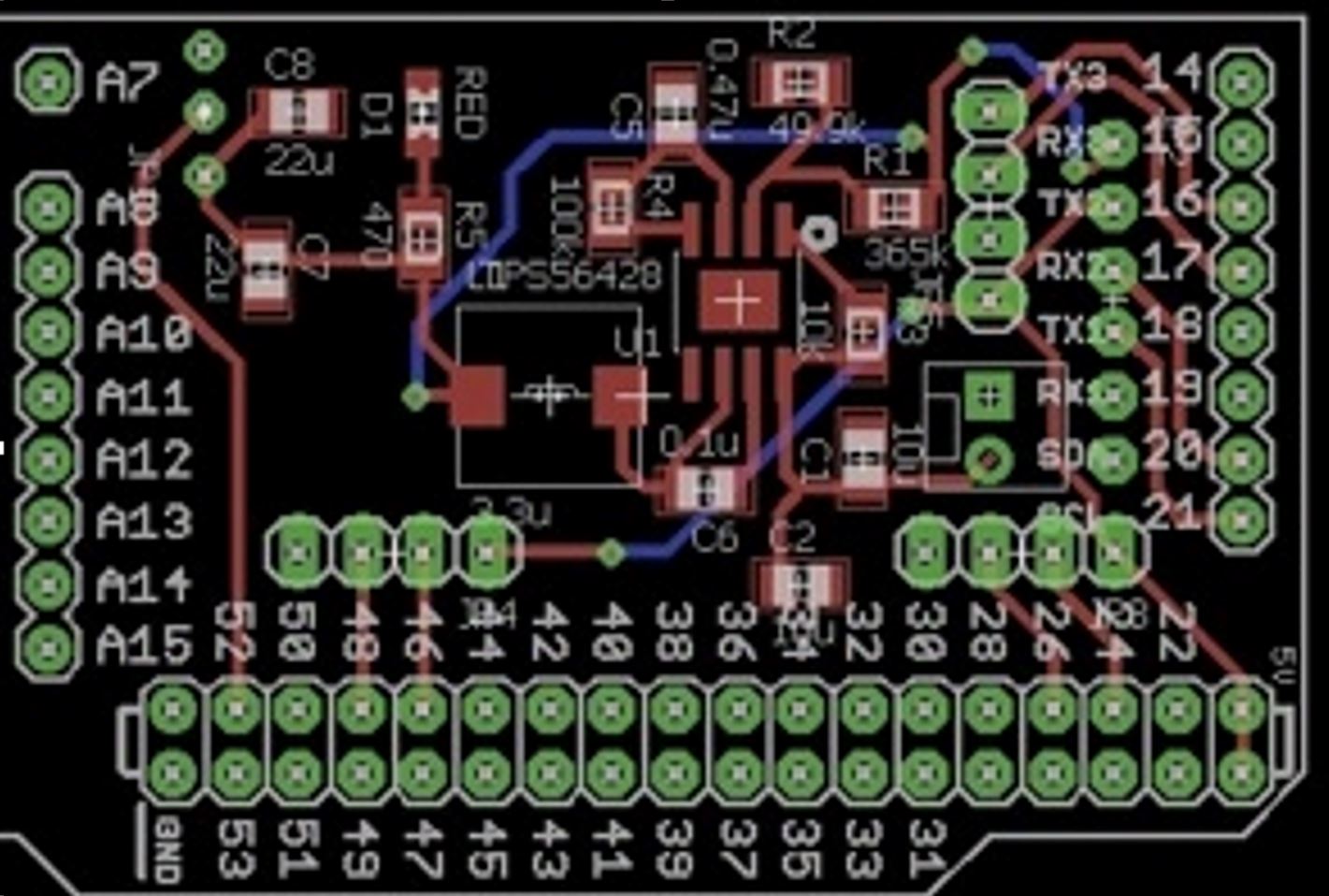

                                                             Figure 17 – PCB Layout

The pathfinder project needs a custom PCB to integrate all the electronic components, which included: VNH5019 motor shield, PCA9685 Servo PWM Controller, two servos, six DC motors, HC-06 Bluetooth Module, two HC-SR04 ultrasonic sensors, two LED Headlights. The custom PCB also take advantage of the leftover pins on the Arduino Mega. A buck regulator is required to step down the voltage from 12 V to 5.5 V in order to protect the servo driver. The advantage of using buck regulator over the voltage regulator is to keep a constant current.

For further details about the PCB system schematic design and layout, refer to:

Spring 2016 Pathfinder: PCB System Schematic

Spring 2016 Pathfinder: Design and Manufacturing – PCB Layout

Hardware Design

Overall Design

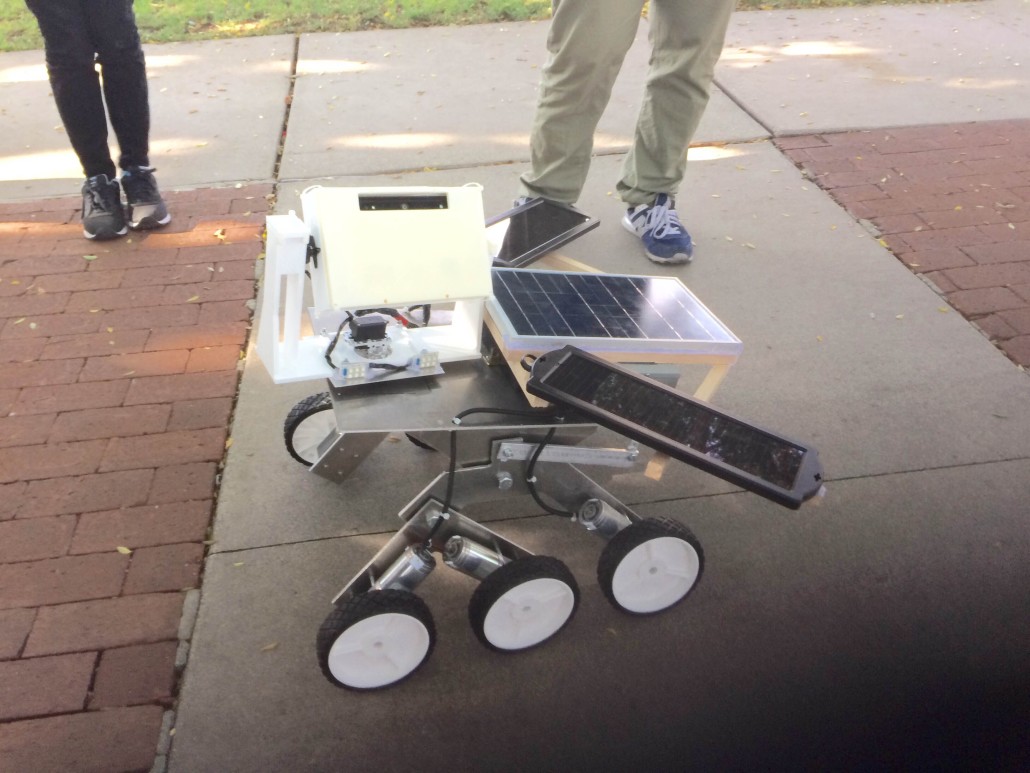

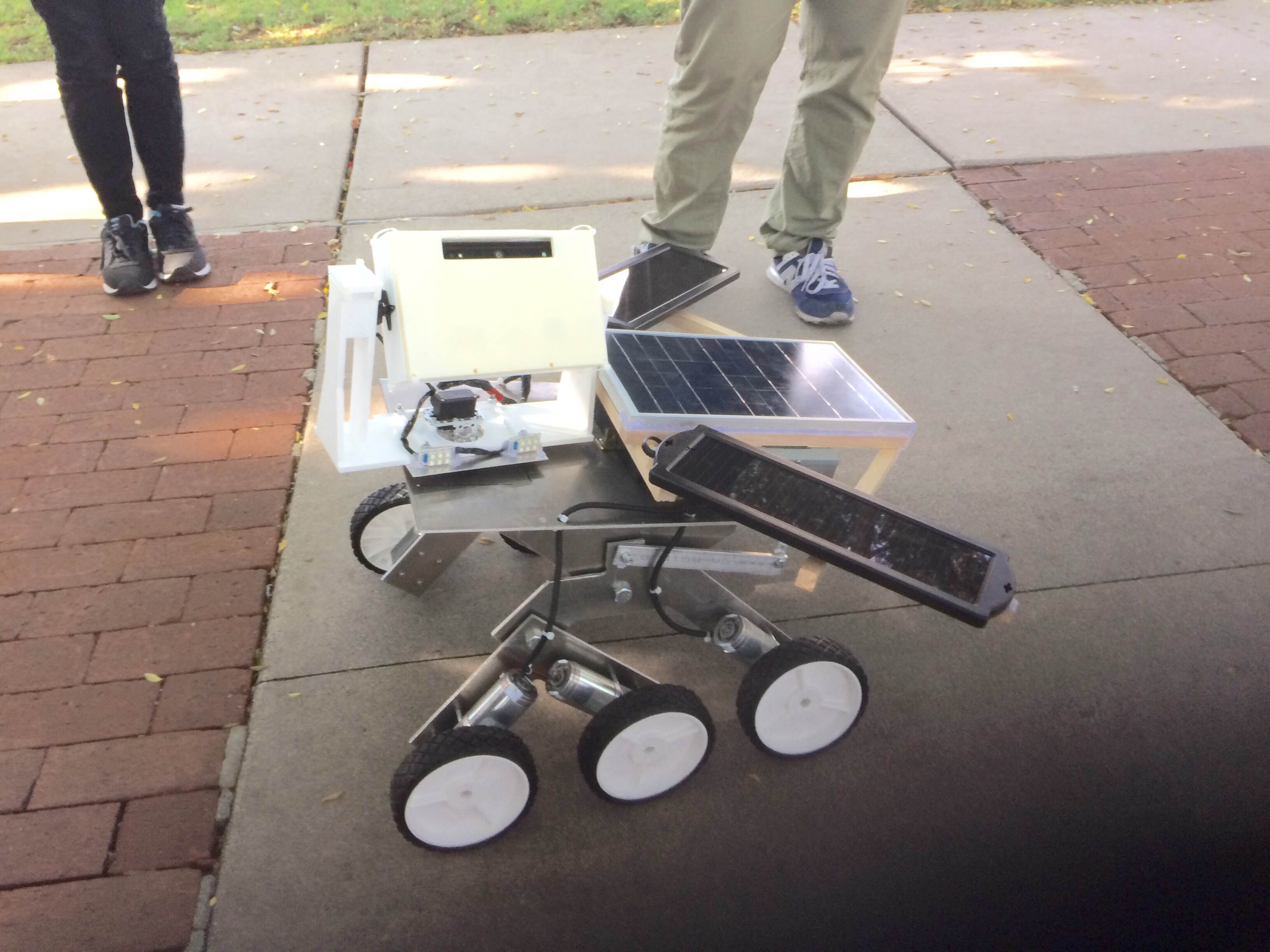

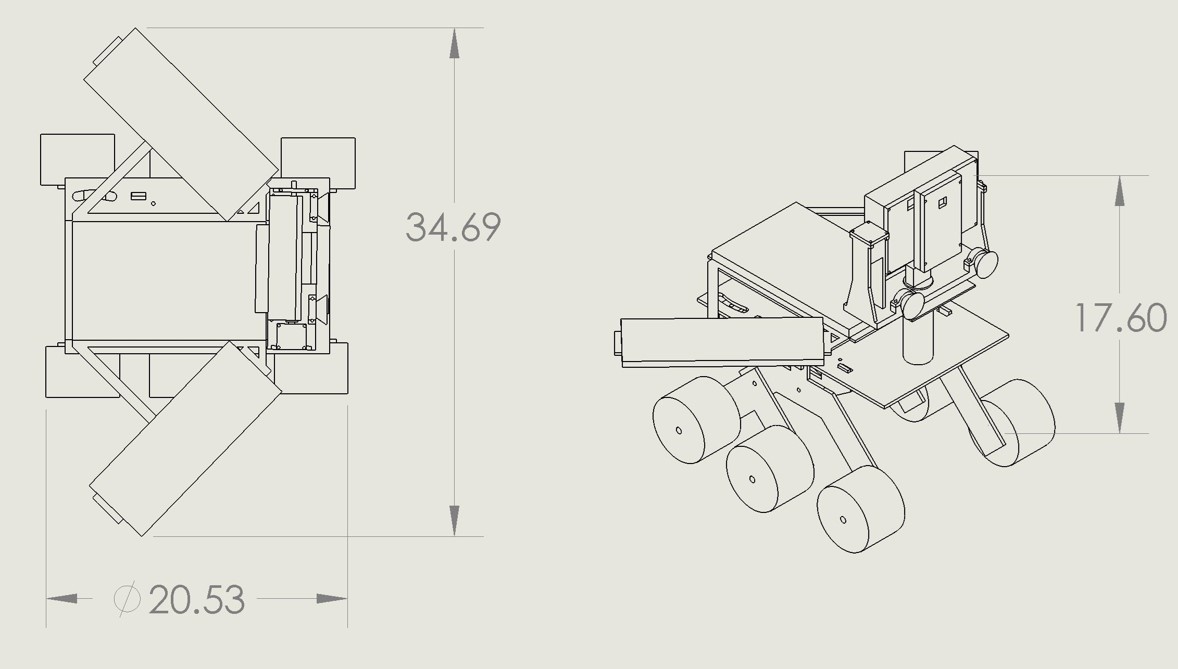

                                                           Figure 18 – Pathfinder overall Design

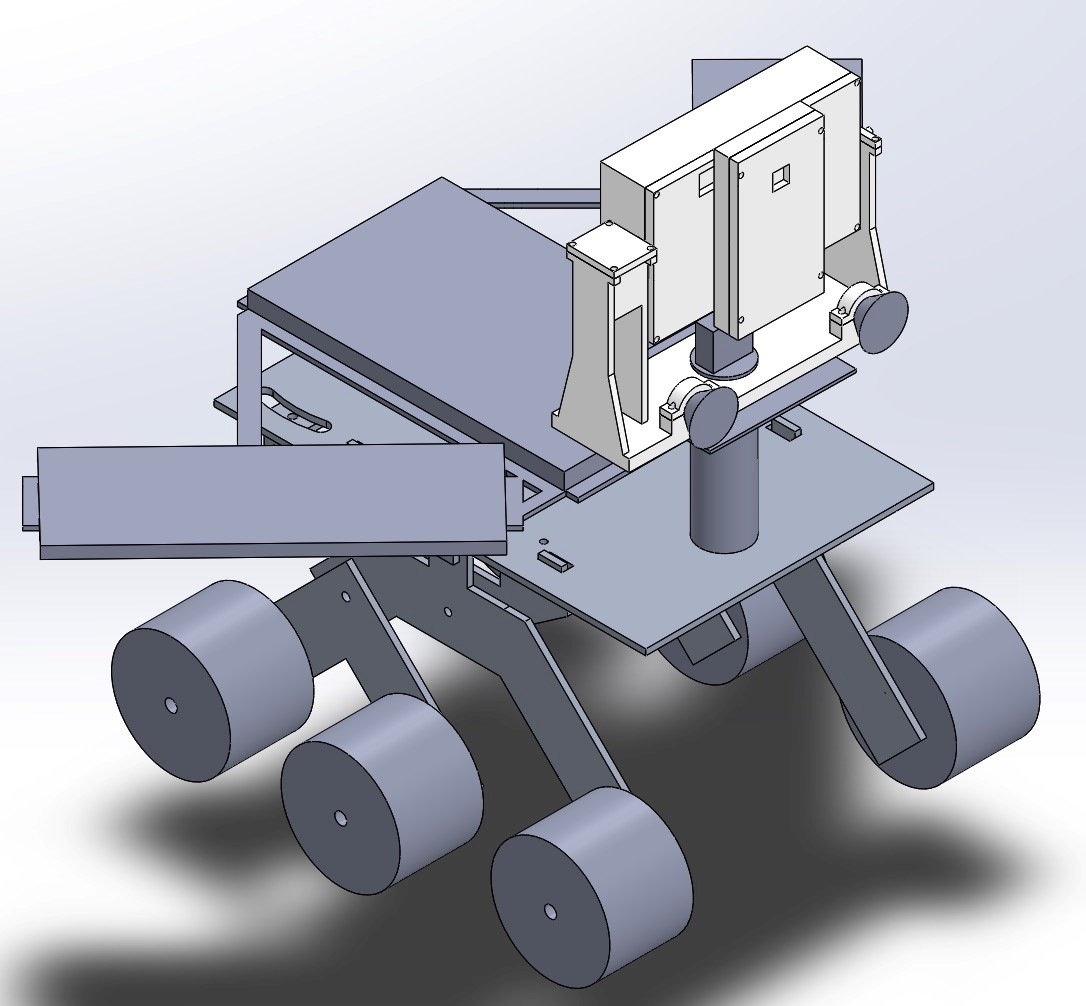

                                                            Figure 19 – 3D Illustration

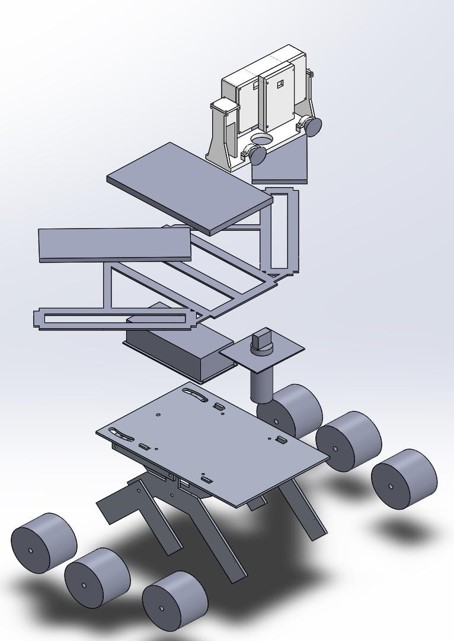

                                                            Figure 20 – Exploded View

**Rocker Bogie System**

                                                                 Figure 21 – Rocker Bogie System

                                                              Figure 22 – Exploded View

**Tilt System**

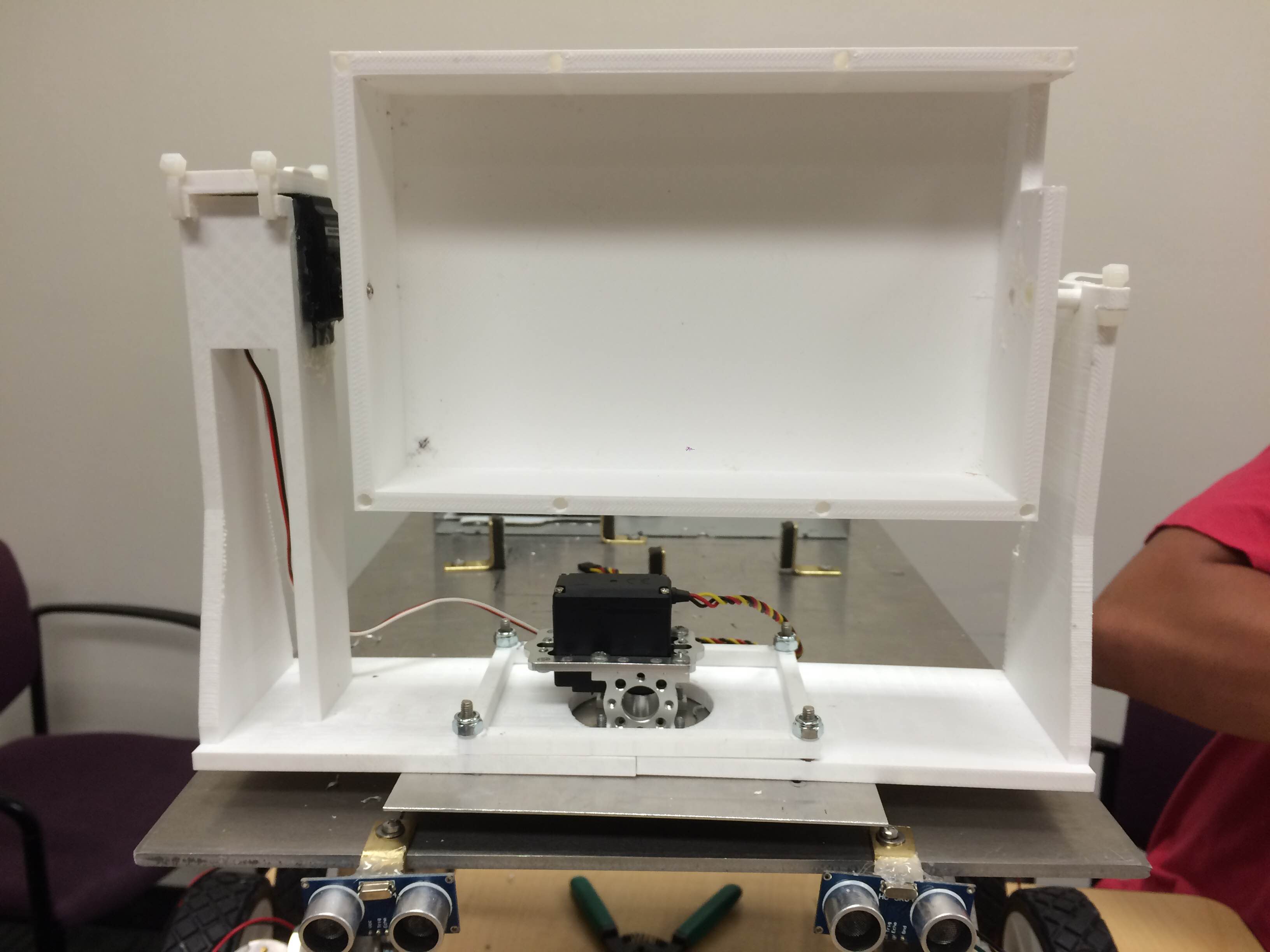

                                                                       Figure 23 – Tilt System

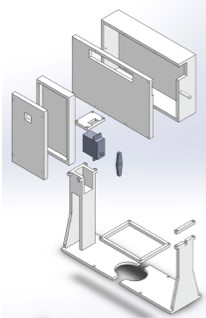

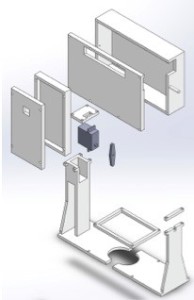

                                                                    Figure 24 – Exploded View

These above pictures demonstrate the hardware design from the overall 3D models to breakdowns parts of the pathfinder rover design.

The goal of Spring 2016’s Pathfinder is to hold a Google Tango tablet, phone, solar panels in the shape of the Arxterra logo, a tilt system, and an electronic box. To best traverse obstacles, a rocker bogie suspension system design was chosen, with a top surface area of 12in x 18in. Modeled after ServoCity’s runt rover, the chassis was scaled to meet the surface area required for the above mentioned parts. The tilt system was designed to hold the tablet, phone and tilt servo. Lastly, all parts were modeled on the chassis.

For further details of the hardware design, refer to:

Spring 2016 Pathfinder Design and Manufacturing – Tilt System Design

Spring 2016 Pathfinder Design and Manufacturing – Tilt System Finalized Design

Spring 2016 Pathfinder Design and Manufacturing – Rocker Bogie Suspension System Design

Spring 2016 Pathfinder: Design and Manufacturing – Chassis Selection Through the Iterative Design Loop

Software Design

Software System Block Diagram

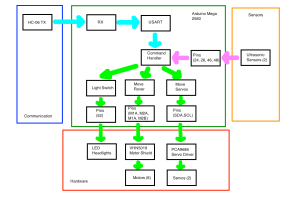

                                                        Figure 25 – Software System Block Diagram

The software design follows the system block diagram and focus on the subsystem level software modules development.

For further details on how each software modules works, refer to:

Spring 2016 Pathfinder: Software Design

For reference of Arduino code controlling motors and servos through coolterm, refer to:

Spring 2016 Pathfinder: Software Design

For reference of controlling motors through Arxterra, refer to

Spring 2016 Pathfinder: Bluetooth Communication with the Arxterra App

For reference of controlling servos through Arxterra, refer to

Spring 2016 Pathfinder: Arxterra Servo Control for Pan and Tilt

Verification and Validation Test Plans

Verification and Test Plans are required to prove that the project can meet the L1/L2 requirements.

Since our team received new requirements of building a new pathfinder in a short period of time, many of the verification tests had not yet been done due to the heavy work of manufacturing. The project final demo then was been used for some of the verification and validation tests.

For more details of the verification matrix and Validation Test Plans, refer to the “project resource”

Project Update

Work Breakdown Structure

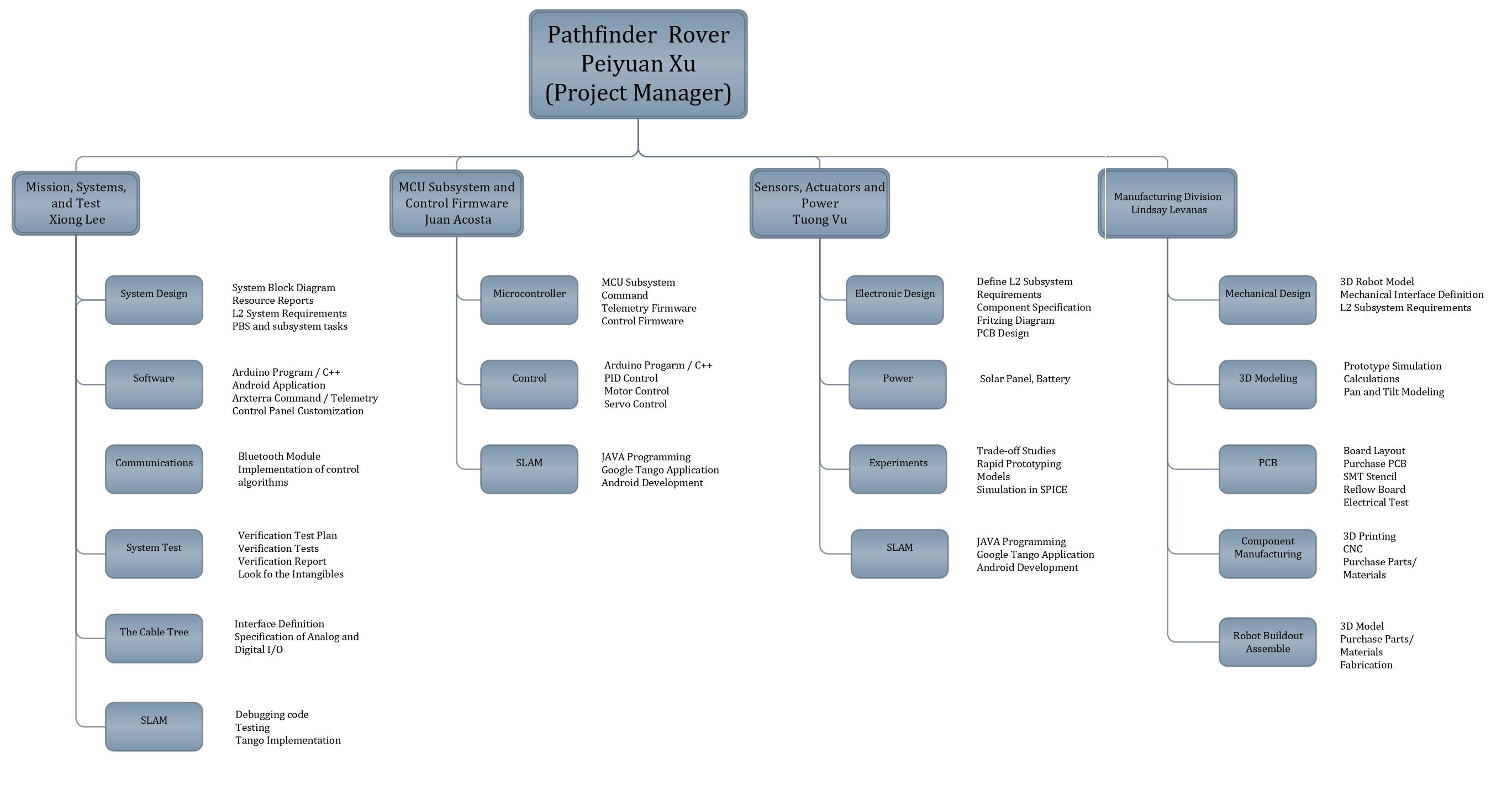

                                                              Figure 26 – Work Breakdown Structure

This work breakdown structure demonstrates all the work needed to be done for this project Pathfinder Rover. There are four branches that indicates different job duties and division works assigned to the system and subsystem engineers.

Resource Report

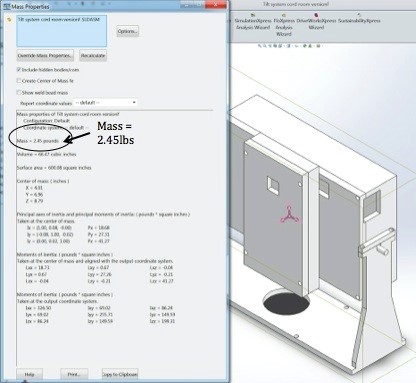

Mass Report & Power report

The mass report and power report are both missing because our team did not have enough time to update the reports for the new pathfinder.

For previous mass report and power report, refer to “CDR presentaion” in Project resource file

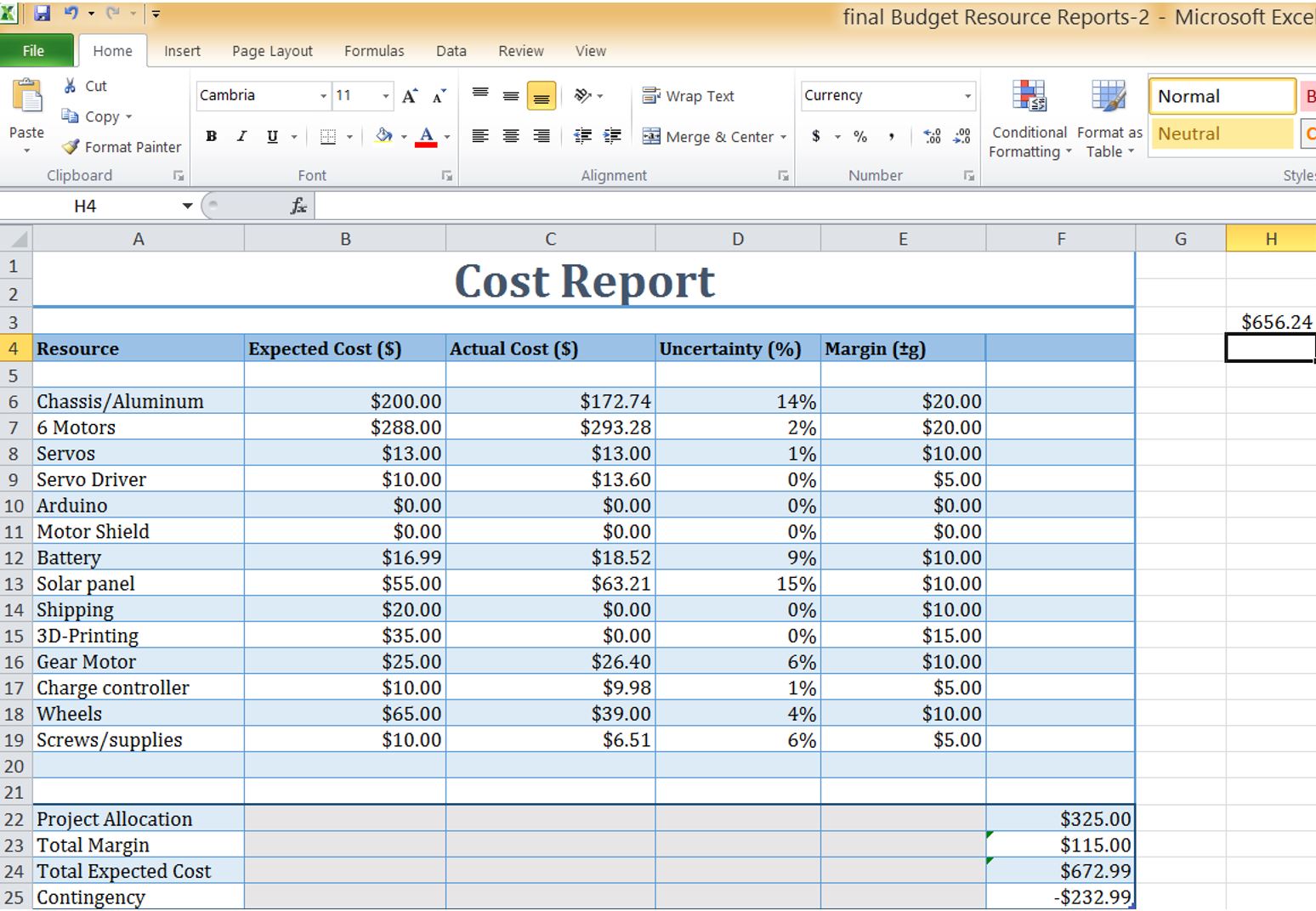

Cost Report

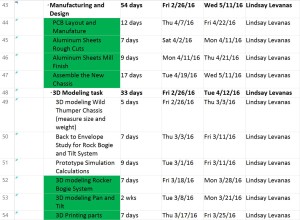

Project Schedule and Progress

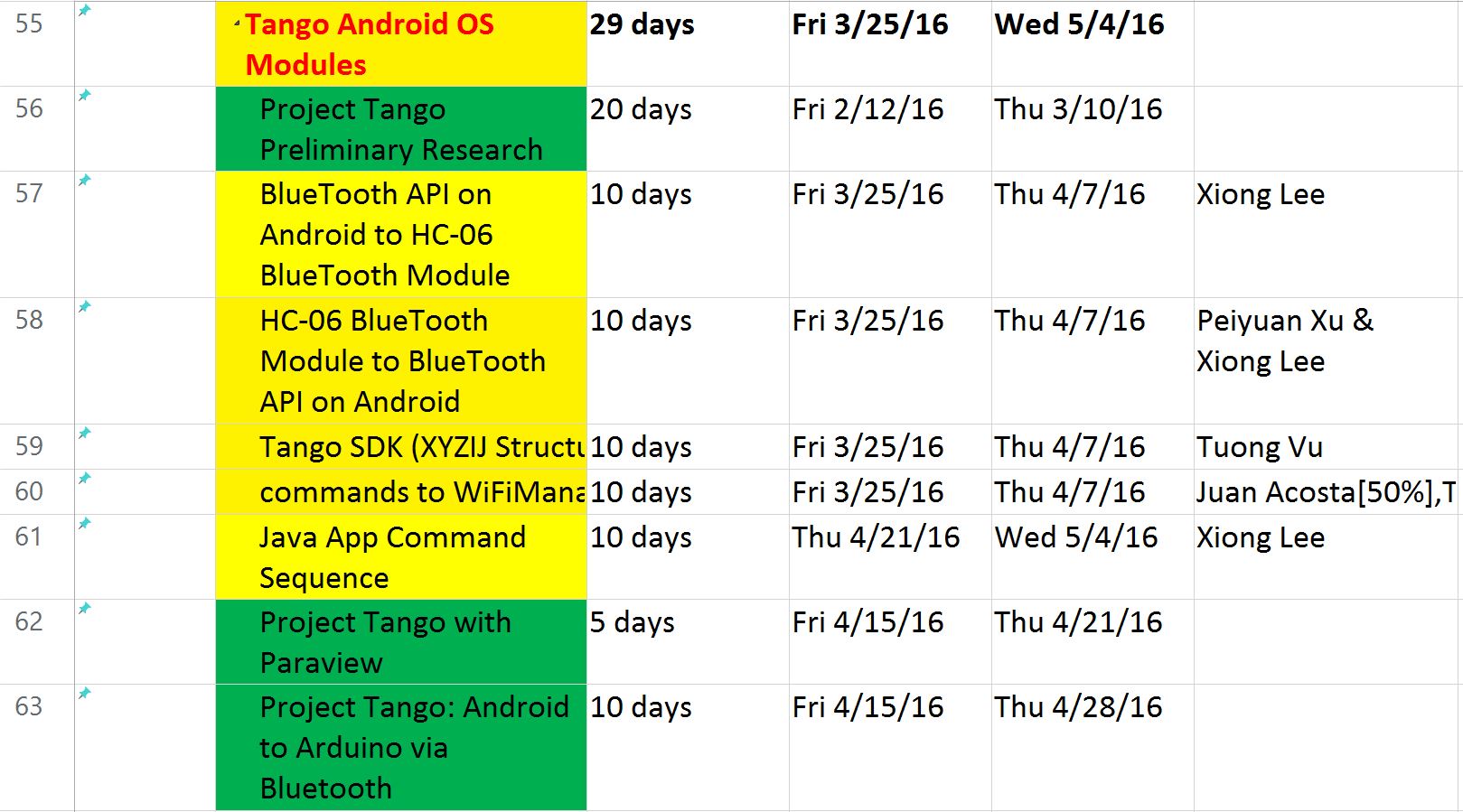

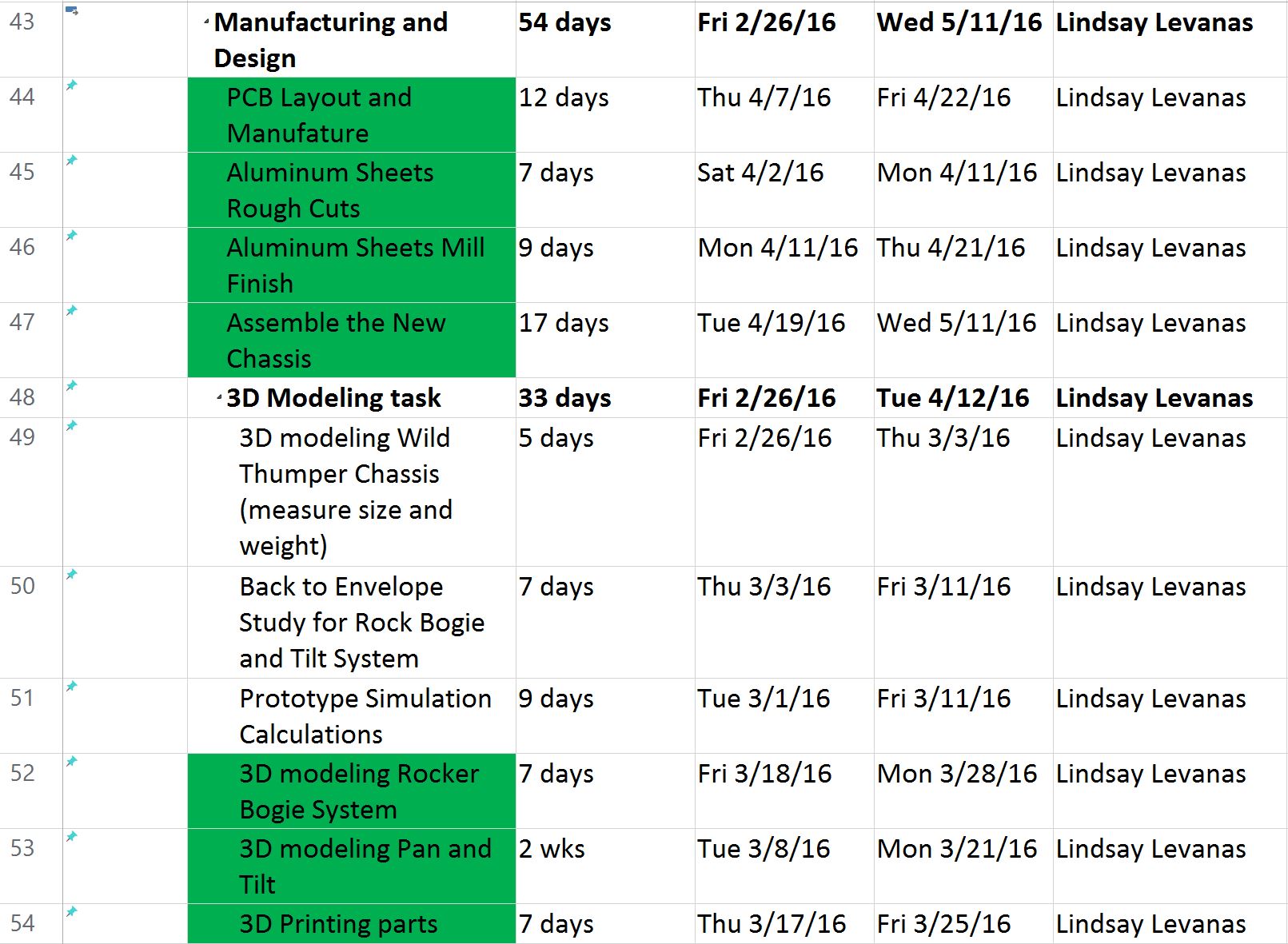

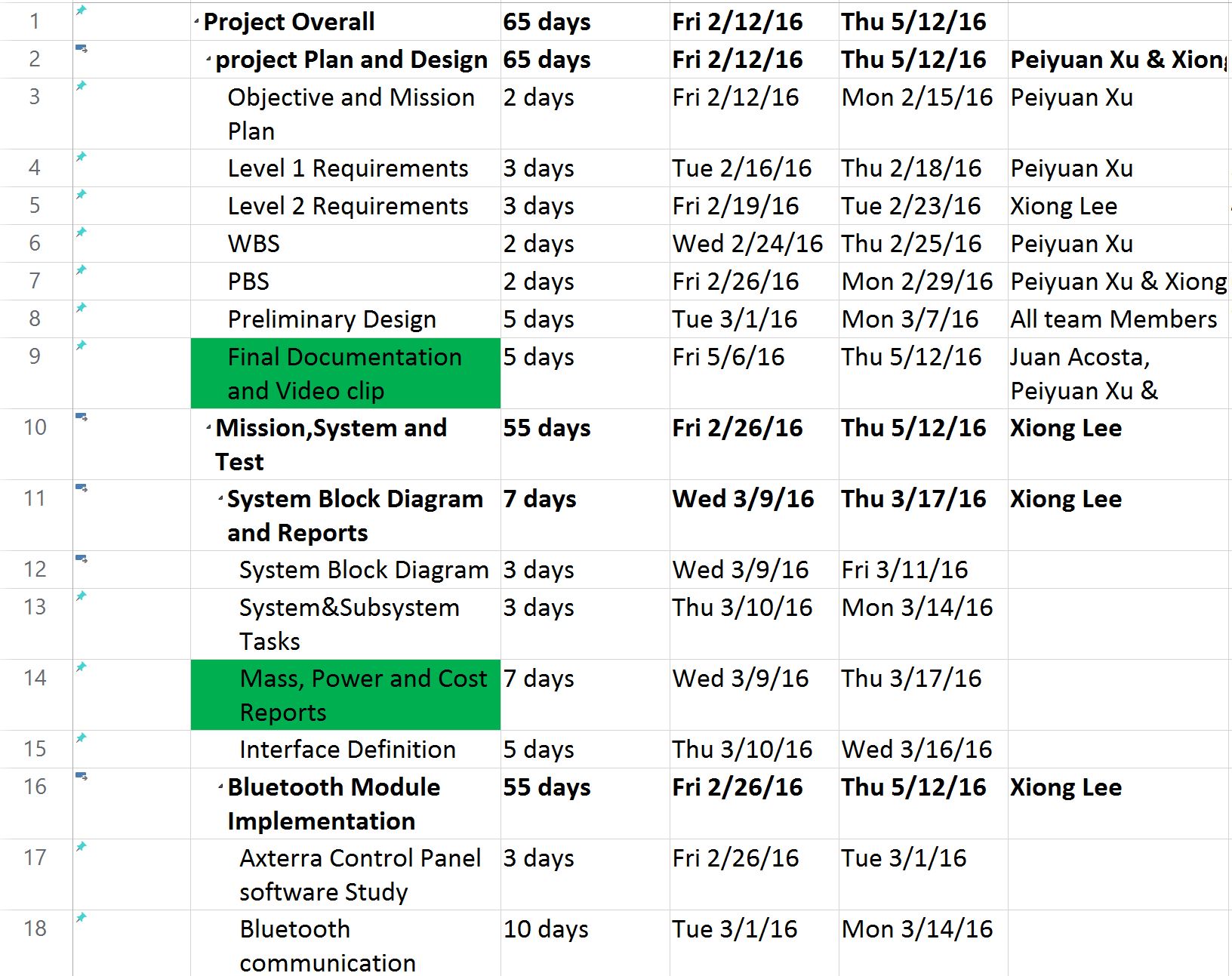

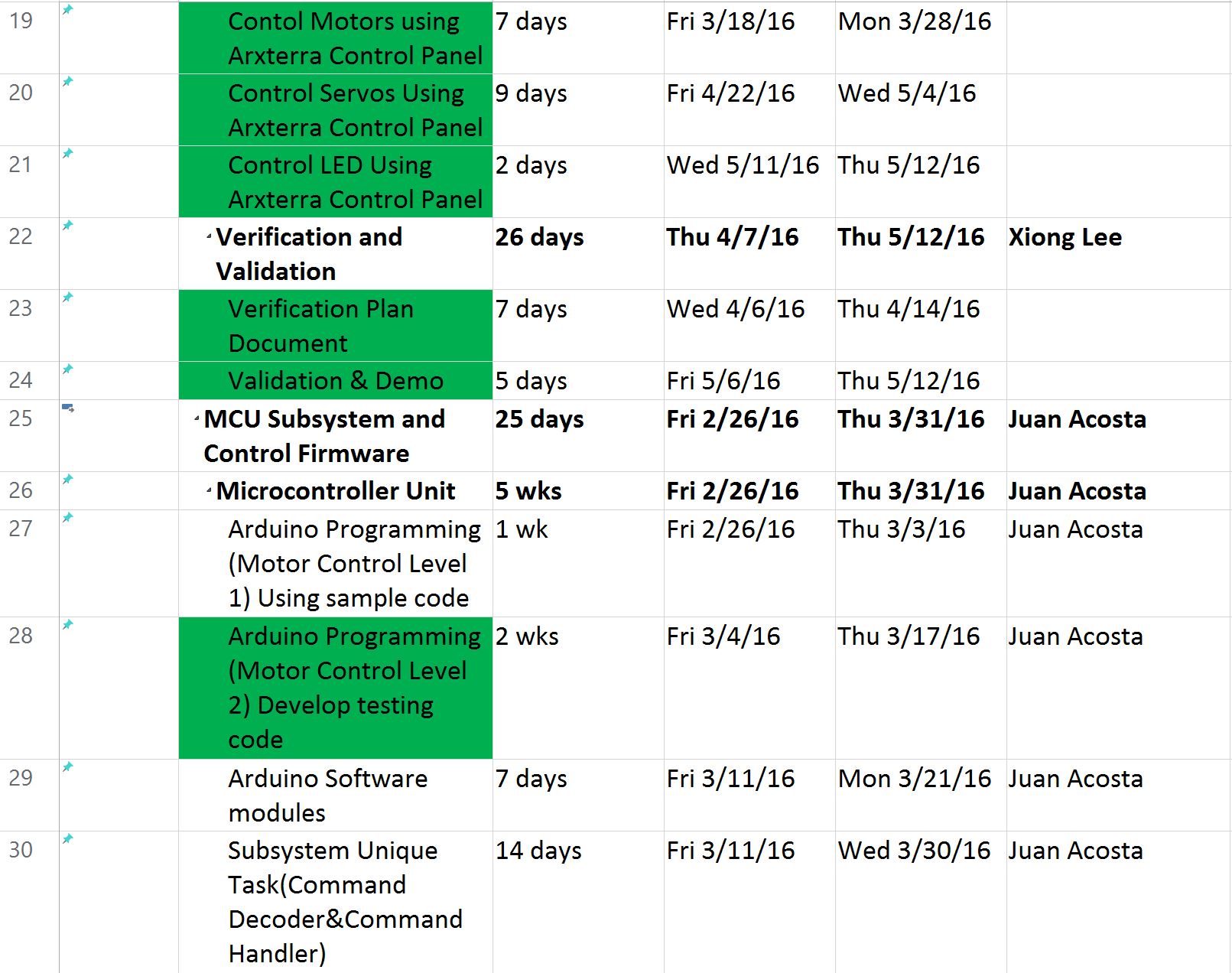

Above is the final schedule for this spring 2016 Pathfinder Rover Project. The Project Overall duration is 65 school days. This schedule was made and managed by the project manager to keep on track of the project overall progress. The tasks highlighted in green are the major tasks our team accomplished during this semester, while those tasks highlighted in yellow are the tasks our team had difficulties and could not accomplish them on time. In this semester, our team was able to fully tested, debugged and implemented the code for motors control and servos control for pan and tilt system through both coolterm and Arxterra. Another progress we made was to build a new generation of pathfinder by implementing Rocker Bogie Suspension System and solar panels self-charging capability. However, the team had troubles of implementing Project tango modules to the pathfinder.

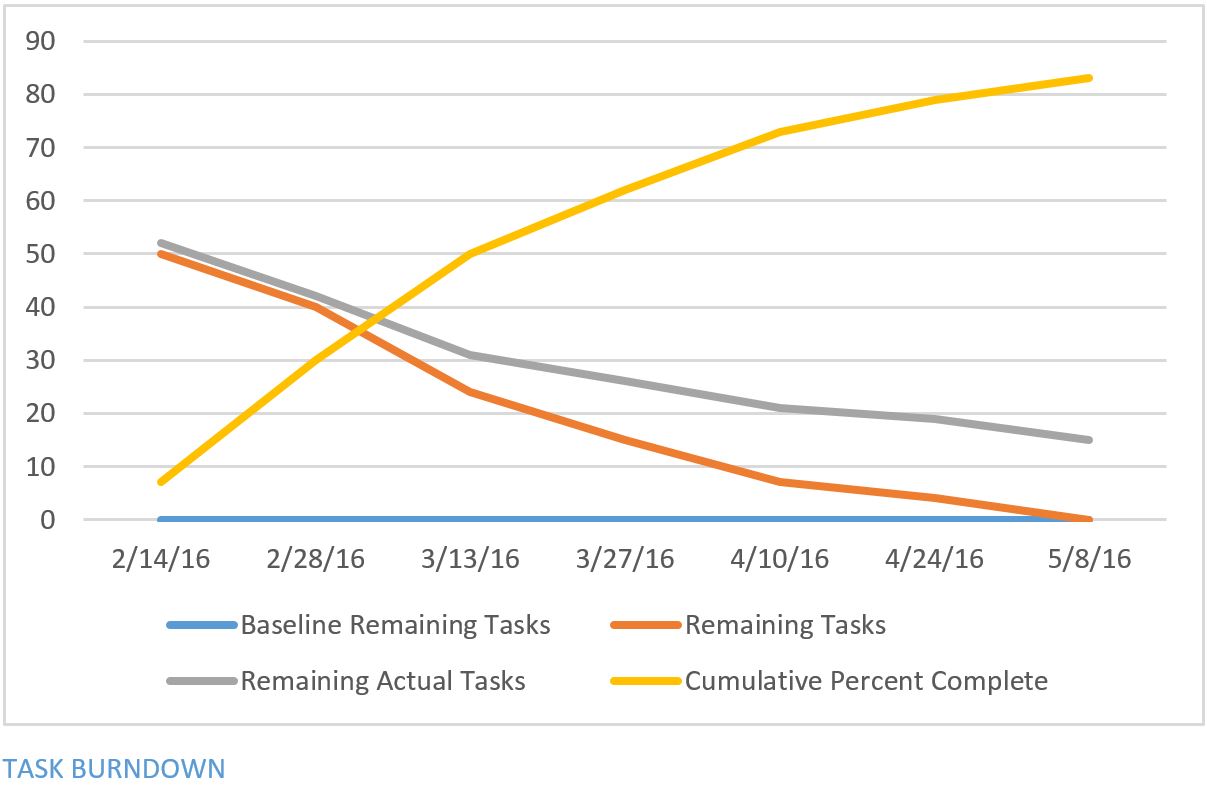

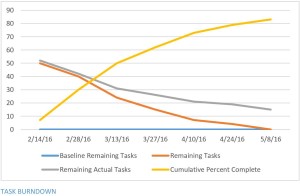

BurnDown

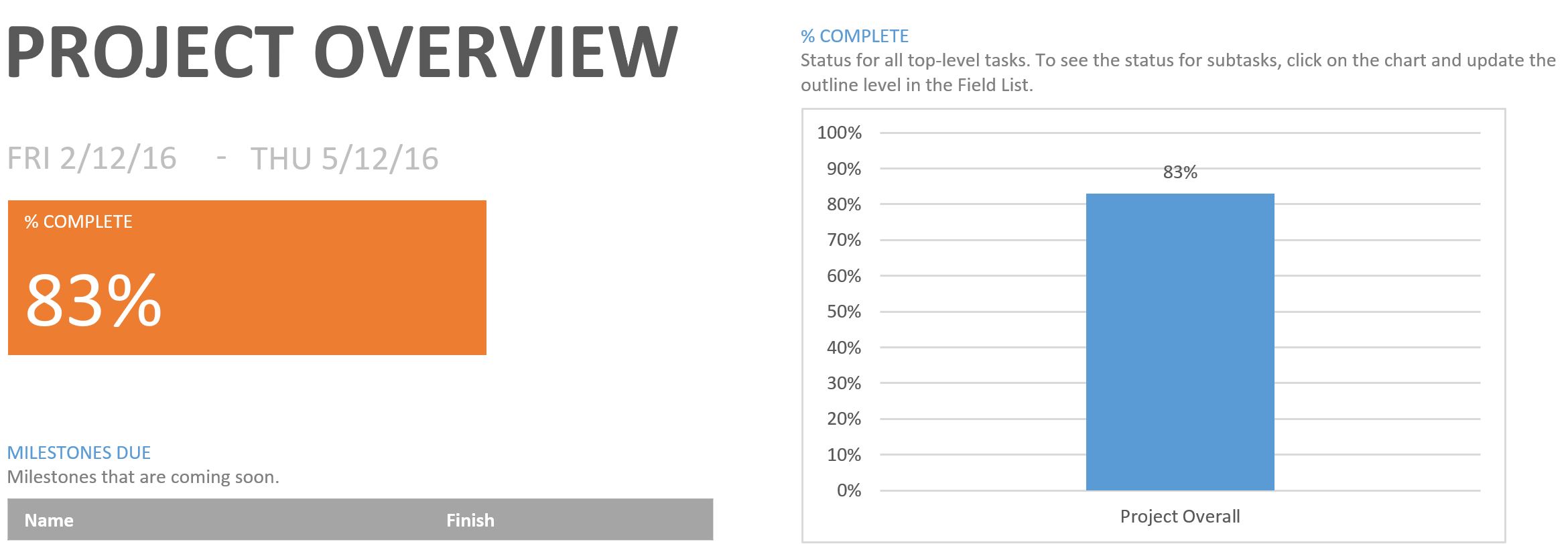

Completion

The Project Overall completion is 83%.



Concluding Thoughts:

Lessons learned the hard way

1. The major problem our Pathfinder Team had was Project Tango. It is fairly new and has many limitations on sensor abilities as well. After we done the research of project tango, we realized that it requires extensive knowledge of Java programming and Android App development to accomplish the mission. Unfortunately none of the team member had that experience.
2. The second issue we had was that the project requirements kept changing during the beginning of the semester. The mission profile went from daytime at desert terrain to night time at CSULB campus. The is due to the fact that the tango’s IR sensors for depth perception is generally restricted to indoor environments (sun and incandescent IR light can drown out structured light sensing).
3. The third issue we had was that the manufacturing process for the aluminum sheets took too long from the rough cutting to mill finish. The aluminum was cut by hand by group members that weren’t supposed to be involved. As the project manager, I decided to let the the whole team contribute on assembling the parts during the final week to accomplish the mission. But the downside was that we did not have enough time to redo some of the verification tests for new chassis and motors.
4. It is hard to manage the conflicts among cost, schedule and performance. Our pathfinder team was having trouble on getting all the parts we wanted. We were approved to get an extra budget of $300, yet, we still did not have enough money to get better wheels. The wheels problem lowered our project performance on obstacle climbing test.

Future Plans for Pathfinder

1. Keep working on Project Tango. It is recommended to have 1 or 2 team members who has good knowledge of Android App development or some students from computer science major who can commit to help this project.
2. The experimental results in this blog post need to be updated.
3. The Mass and Power report need to be updated.
4. Change the wheels on the pathfinder.
5. Improve the encasement for tango (sealed, waterproof). This pathfinder can be taken to the wild area.
6. Think of a way to rearrange the weight on top of the pathfinder. One issue we had was that the weight distribution was more on the backside, therefore it gives unstableness when climbing the obstacles.

Future Plans for project manager

1. I think the project manager needs to be trained on their project management skills. Learning how to manage the cost, schedule and performance. A good way is to have a guest speaker give a short lecture on that.
2. Project manager should post a project update blog post every two weeks. It can help them to keep on track of the project progress and schedules. It is also Easy for team member to follow.

Project Resource Files

Project Video

PDR

CDR

Project Schedule

Verification and Validation Documents

Solidworks File

Fritzing File

EagleCAD File

Arduino Code

PCB Library

Bill of Material(1)

Bill of Material(2)



































By:

Juan Acosta (Electronics & Control – MCU Subsystem and Firmware)

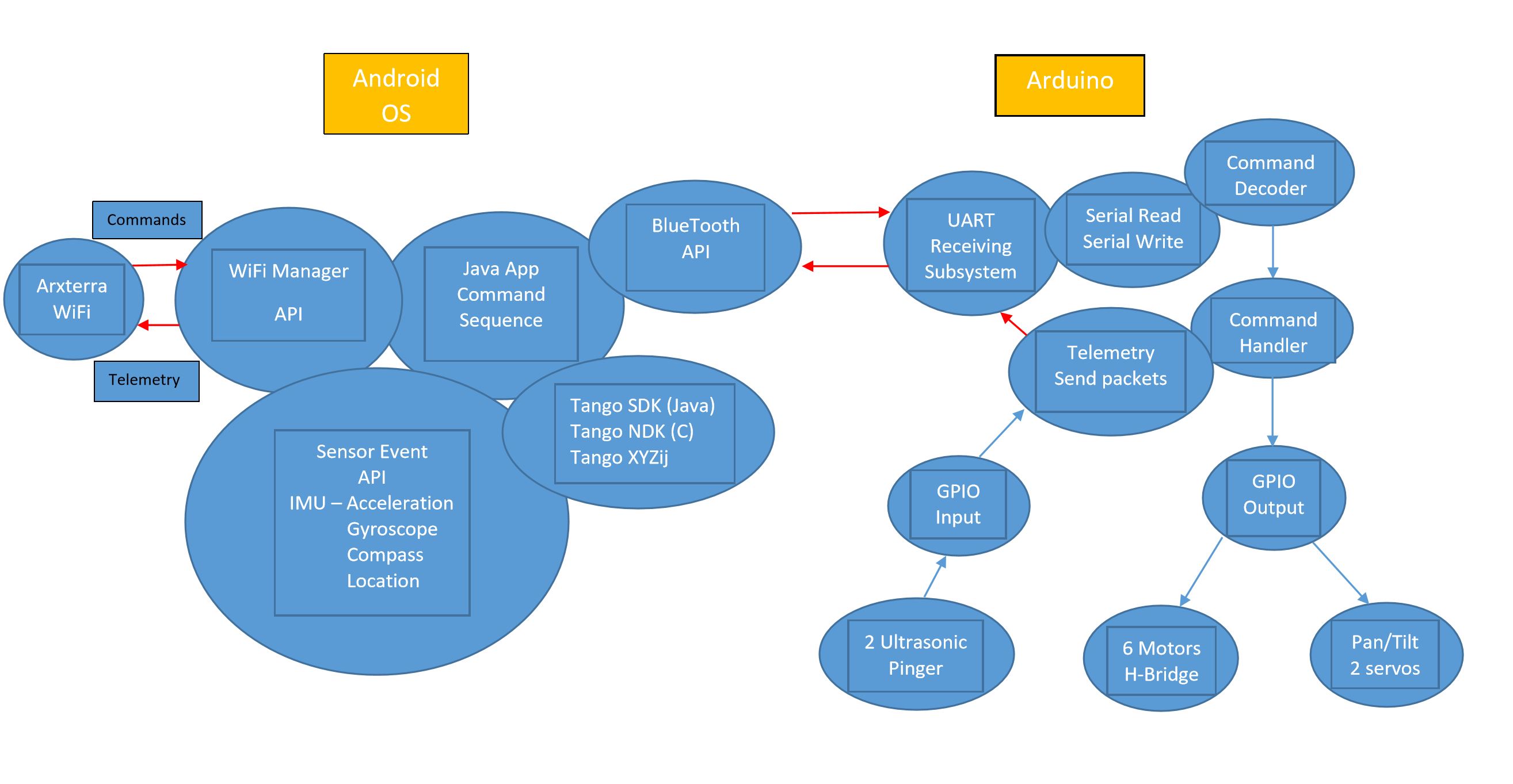

Software System Block Diagram:

The figure above depicts the software side of the Pathfinder. First, commands will be sent through Bluetooth and received through Serial communication ports on the Arduino Mega. Then the Command Handler will decode the telemetry packets being sent and appropriate an action unique to each packet ID. The VHN5019 Motor shield will implement the movement of the Pathfinder. The PCA9685 Servo driver will control the pan and tilt servos. Additionally, the use of ultrasonic sensors will provide feedback for obstacle detection or collision. Lastly, we will create a custom Arxterra command to control our L.E.D. headlights.

Arduino Code for controlling servos through Coolterm:

The following code snippet was used to test the functionality of the PCA9685 Servo Driver and how to gain a better understanding for servo control. For testing purposes, we used the Coolterm application on a laptop to demonstrate wireless bluetooth control of the servos. The code provided will help future projects in the process of initializing bluetooth communication, transmission of data, and later the creation of custom Arxterra commands.

///////////////////////////////////////////////////////////////////////////////

// The following code was written, tested and debugged by Juan Acosta for

// testing pan and tilt servo control through two wire communication (I2C)

// using the HC-06 to implement commands being sent from the COOLTERM application

// from a laptop or phone to the arduino.

// Group: Pathfinder Spring 2016

// Electronics and Control:  Juan Acosta (MCU Subsystem and Control Firmware)

///////////////////////////////////////////////////////////////////////////////

#include <Wire.h>

#include <Adafruit_PWMServoDriver.h>

///////////////////////////////////////////////////////////////////////////////

// following are connections required for HC06 module:

// connect BT module TX to RX0

// connect BT module RX to TX0

// connect BT Vcc to 5V, GND to GND

///////////////////////////////////////////////////////////////////////////////

// following are connections required for PCA9685 Servo Driver:

// connect V+ to 5V, GND to GND (servo power terminals)

// connect Vcc to 5V, GND to GND

// connect SDA to analog pin A4 (required for I2C bus control on arduino UNO)

// if using arduino MEGA SDA has dedicated pin on PIN20

// connect SCL to analog pin A5 (required for I2C bus control on arduino UNO)

// if using arduino MEGA SCL has dedicated pin on PIN21

// connect pan servo plug to 9

// connect tilt servo plug to 11

///////////////////////////////////////////////////////////////////////////////

Adafruit_PWMServoDriver pwm = Adafruit_PWMServoDriver();

#define SERVOMIN  0          // this is the ‘minimum’ pulse length count

                             // (for Pan = facing left)(for tilt = facing down)

#define SERVOMAX  500        // this is the ‘maximum’ pulse length count

                             // (for Pan = facing right)(for tilt = facing up)

// The limits for the pan will be from 0 degrees to 180 degrees of view in steps

// of 45

// The limits for the tilt will be from 45 degrees to 135 degrees of view in

// steps of 45

void setup() {

  Serial2.begin(9600);       // set the data rate for the Serial Port

  pwm.begin();

  pwm.setPWMFreq(60);       // Analog servos run at ~60 Hz updates

  yield();

}

// Character commands list:

//      (“Send ‘0’ pan facing left (180 degrees)”);

//      (“Send ‘1’ pan facing diagonal left (135 degrees)”);

//      (“Send ‘2’ pan facing center (90′ degrees)”);

//      (“Send ‘3’ pan facing diagonal right (45′ degrees)”);

//      (“Send ‘4’ pan facing right (0′ degrees)”);

//      (“Send ‘5’ tilt facing down (-45 degrees)”);

//      (“Send ‘6’ tilt facing center (0 degrees)”);

//      (“Send ‘7’ tilt facing up (45 degrees)”);

char a; // stores incoming character from other device (phone, tablet, or laptop)

void loop()

{

   if (Serial2.available())        // if text arrived in from hardware serial…

  {

    a=(Serial2.read());

    if (a==’4′)                   // face right

    {

      Serial.println(” pan facing right (0′ degrees)”);

  for (uint16_t pulselen = SERVOMIN; pulselen < SERVOMAX; pulselen++) {

    pwm.setPWM(9, 0, pulselen);

  }

  delay(1000);

    }

    if (a==’3′)         // face right at an angle (diagonal right)

    {

      Serial.println(“pan facing diagonal right (45′ degrees)”);

  for (uint16_t pulselen = SERVOMIN; pulselen < 375; pulselen++) {

    pwm.setPWM(9, 0, pulselen);

  }

  delay(1000);

    }

    if (a==’2′)         // face straight (centered)

    {

      Serial.println(“pan facing center (90′ degrees)”);

  for (uint16_t pulselen = SERVOMIN; pulselen < 250; pulselen++) {

    pwm.setPWM(9,0,pulselen);

  }

  delay(1000);

    }

   if (a==’0′)         // face left

   {

      Serial.println(“pan facing left (180 degrees)”);

  for (uint16_t pulselen = SERVOMAX; pulselen > SERVOMIN; pulselen–) {

    pwm.setPWM(9, 0, pulselen);

  }

  delay(1000);

   }

   if (a==’1′)         // face left at an angle (diagonal left)

   {

      Serial.println(” pan facing diagonal left (135 degrees)”);

  for (uint16_t pulselen = SERVOMAX; pulselen > 125; pulselen–) {

    pwm.setPWM(9, 0, pulselen);

  }

  delay(1000);

   }

   if (a==’5′)         // face down (-45 degrees)

   {

      Serial.println(“tilt facing down (-45 degrees)”);

  for (uint16_t pulselen = SERVOMAX; pulselen > 125; pulselen–) {

    pwm.setPWM(11, 0, pulselen);

  }

  delay(1000);

   }

   if (a==’6′)         // face straight (centered)

    {

      Serial.println(“tilt facing center (0 degrees)”);

  for (uint16_t pulselen = SERVOMIN; pulselen < 250; pulselen++) {

    pwm.setPWM(11,0,pulselen);

  }

  delay(1000);

    }

    if (a==’7′)         // face right at an angle (diagonal right)

    {

      Serial.println(“tilt facing up (45 degrees)”);

  for (uint16_t pulselen = SERVOMIN; pulselen < 375; pulselen++) {

    pwm.setPWM(11, 0, pulselen);

  }

  delay(1000);

    }

   if (a==’?’)        // commands list

    {

      Serial.println(“Send ‘0’ pan facing left (180 degrees)”);

      Serial.println(“Send ‘1’ pan facing diagonal left (135 degrees)”);

      Serial.println(“Send ‘2’ pan facing center (90′ degrees)”);

      Serial.println(“Send ‘3’ pan facing diagonal right (45′ degrees)”);

      Serial.println(“Send ‘4’ pan facing right (0′ degrees)”);



      Serial.println(“Send ‘5’ tilt facing down (-45 degrees)”);

      Serial.println(“Send ‘6’ tilt facing center (0 degrees)”);

      Serial.println(“Send ‘7’ tilt facing up (45 degrees)”);

    }

    // you can add more “if” statements with other characters to add more commands

  }

}

Arduino code for controlling Motors through Coolterm

The following code snippet was used to demonstrate the functionality of the VHN5019 Motor shield and how to gain a better understanding of DC motor control. For testing purposes, we used the Coolterm application on a laptop or cell phone to demonstrate wireless bluetooth control of the pathfinder’s movements. The code provided will help future projects in the process of initializing bluetooth communication, transmission of data, and later the creation of custom Arxterra commands.

///////////////////////////////////////////////////////////////////////////////

// The following code was written, tested and debugged by Juan Acosta for

// testing the functionality of the VHN5019 Motor Shield and how the six motors

// rotate will dictate which way the rover moves.

// using the HC-06 to implement commands being sent from the COOLTERM application

// from a laptop or phone to the arduino.

// Group: Pathfinder Spring 2016

// Electronics and Control:  Juan Acosta (MCU Subsystem and Control Firmware)

///////////////////////////////////////////////////////////////////////////////

#include “DualVNH5019MotorShield.h”

DualVNH5019MotorShield md;

void stopIfFault()

{

  if (md.getM1Fault())

  {

    Serial.println(“M1 fault”);

    while(1);

  }

  if (md.getM2Fault())

  {

    Serial.println(“M2 fault”);

    while(1);

  }

}

void setup()

{

  Serial.begin(115200);

  Serial.println(“Dual VNH5019 Motor Shield”);

  md.init();

  Serial.begin(9600);

}

char a; // stores incoming command from device into variable a

void loop()

{

   if (Serial.available())

  // if text arrived in from hardware serial…

  {

    a=(Serial.read());

    if (a==’?’)//////// send commands list

    Serial.print(“Send a 1 to move the pathfinder forward”);

    Serial.print(“Send a 2 to stop the pathfinder”);

    Serial.print(“Send a 3 to rotate the pathfinder by 180 degrees”);

    Serial.print(“Send a 4 to make the pathfinder reverse”);

    if (a==’1′)/////// move the pathfinder forward by sending a 1

    {

      int o=0; /////// stop the rover before moving forward

     md.setM1Speed(o);

     md.setM2Speed(o);

     for (int p = 0; p <= 300; p++)

  {

      md.setM1Speed(p);

     md.setM2Speed(p);

      Serial.print(“Moving the Pathfinder forward “);

  }

    }

 if (a==’2′)///////////////// stop the wheels by sending a 2

 {

    int i=0;

    md.setM1Speed(i);

    md.setM2Speed(i);

      Serial.print(“Stop the Pathfinder: “);

  }

    if (a==’3′)///////////////// rotate 180 degrees

    {

    Serial.print(“Rotating 180 degrees “);

    int c=0;////////////////// stop rover before rotating

    md.setM1Speed(c);

    md.setM2Speed(c);

  for (int m = 0; m <= 300; m++)  //////// rotate rover 180 degrees

  {

    md.setM1Speed(m);

    md.setM2Speed(m-300);

    delay(2.3);

    int k=0;

    md.setM1Speed(k);

    md.setM2Speed(k);

    }

    }

if (a==’4′)/////// make the pathfinder reverse by sending a 4

{

  Serial.print(“The pathfinder will reverse”);

      int l=0; /////// stop the rover before reversing

     md.setM1Speed(l);

     md.setM2Speed(l);

     for (int j = 0; j <= 300; j++)

  {

      md.setM1Speed(j-600);

     md.setM2Speed(j-600);

  }

    }

  }

}

Conclusion:

Applying what we now have learned, we are ready for software implementation through Arxterra including custom commands. Once we had each module working separately, putting them all together to form the pathfinders software system design will require a reasonable amount of testing and debugging since we now have most of it done working without Arxterra. All that is left is the custom command encoding.

Source Materials:

– Coolterm:

http://freeware.the-meiers.org

– Spring 2016 Pathfinder: Subsystem Design

http://arxterra.com/spring-2016-pathfinder-subsystem-design/

– Arxterra Custom Commands

https://www.youtube.com/watch?v=G5vRvecFA3A

https://www.youtube.com/watch?v=h4KgktOa8-A

By:

Lindsay Levanas (Design and Manufacturing)

Introduction

This report will serve to document how the Spring 2016 Pathfinder’s PCB layout was designed in EAGLE7.5.0 Light. Reference to the PCB schematic outlined in Spring 2016 Pathfinder: PCB System Schematic¹ will be mentioned, as well as safety precautions from outside sources. Note that all components will be surface mounted, and all jumper pins will be through hole.

Reference – PCB Schematic

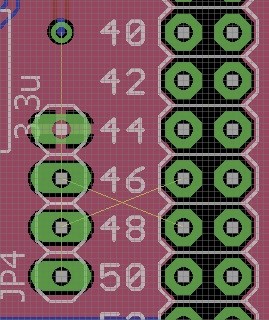

Although Eagle is designed to carry over the component’s wiring from the schematic to the board’s layout (then called airwires), the connections between pins can sometimes be hard to see. For example, in the illustration below, where does the top airwire (the thin yellow line) go? Does it connect straight to the bottom pin of JP4? Or does it connect to one of JP4’s other pins too?

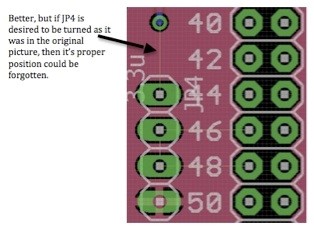

Therefore, in addition to rotating the part (which can be hard to keep track of), the original schematic can also be referenced to verify that the proper connections are being made.

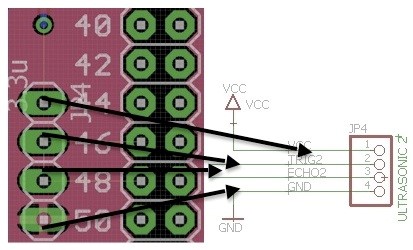

Using the above part as an example, the equivalent part in the schematic can then be used as a reference.

Since pins 2 and 3 are accounted for with single connections and ground does not use an airwire, the top connection can then only be to pin 1.

Note that this process can be used for any component where the connection seems unclear. Now that a general idea has been obtained for the PCB’s wiring, safely measures can be looked into next.

Safety – Current Amount and Trace Width

To ensure that the PCB is able to function properly, the amount of current through the circuit needs to be considered. If the traces are too small for the amount of current they need to carry, then they run the danger of burning out.² According to the Power Test³ the max amount of current Spring 2016 Pathfinder’s PCB will be carrying is 140mA.

Using a trace width calculator (shows above) for PCBs,⁴  the minimum desired trace width can be found.

Note that as Spring 2016 Pathfinder’s PCB traces will be on external layers, the width of the trace needs to be no smaller then .393mils.

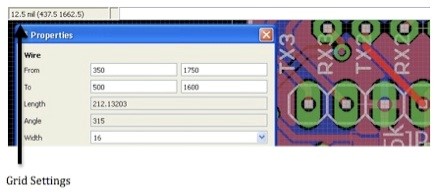

To check the trace width in Eagle, right click on any trace and select Properties. In the pop up box, check the width number against the grid units. This will tell you what units the width is being measured in as Eagle bases all numbers on the grid units.

As is illustrated above, the traces are set to have a width of 16mils. As this is larger then the trace width calculations, the trace sizes do not have to be changed.

Alignment – Buck Converter

For optimal functionality of the buck converter, the TPS56428 chip needs to be considered. This means that the circuit layout included in the chip’s datasheet⁵ must be followed, or the PCB may not work. Below is the proper setup outlined in the datasheet followed by the corresponding PCB layout.



Conclusion and Future Plans

In conclusion, Spring 2016 Pathfinder’s PCB will follow the corresponding PCB schematic, current safety precautions and proper chip layout. After fabrication, the next step will be to solder all of the parts onto the board.



Source Materials:

1. Spring 2016 Pathfinder: PCB System Schematic, Custom PCB Schematic, 1/3/2016 http://arxterra.com/spring-2016-pathfinder-pcb-system-schematic/
2. Reference Designer Calculations, PCB Trace Width Calculator, 2009 http://www.referencedesigner.com/cal/cal_06.php
3. Spring 2016 Pathfinder: PCB System Schematic, Power Test, 1/3/2016 http://arxterra.com/spring-2016-pathfinder-pcb-system-schematic/
4. PCB Printed Circuit Board File Creation Calculator, Trace Width Website Calculator, 2007 http://www.4pcb.com/trace-width-calculator.html
5. Electronic Components Datasheet Search, TPS56428 Datasheet(PDF) 14 Page – Texas Instruments, April 2013,                                                                                                                   http://html.alldatasheet.com/html-pdf/523356/TI/TPS56428/428/14/TPS56428.html







By:

Juan Acosta (E&C – MCU Subsystem & Firmware)

Fritzing Diagram

The fritzing schematic above depicts the circuit we used for testing the Wild Thumper Chassis’ motors, batteries, ultrasonic sensors, headlight L.E.D.s, servo driver along with servos, the motor shield along with the six motors driving the rover, and the Bluetooth module.

Earlier testing showed us that the Arduino Mega that we are using would leave us with plenty of unused pins, so we contemplated switching micro- controllers to the Arduino Uno. But after more experimentation we found the need for a servo driver to drive our pan and tilt system. We also found the need of digital pins to control the headlight L.E.D.s, communication pins for the Bluetooth module, and control pins for the ultrasonic sensors. Because of these needs, we determined that it would be best if we kept using the Arduino Mega.

As you can see from the fritzing diagram, the VHN5019 motor shield utilizes a little more than half of the Mega’s pins in order to drive the motors. So we decided to make another custom PCB shield that would serve to drive the HC-06 Bluetooth Module, the HCSR-04 ultrasonic sensors, the L.E.D. headlights, and the PCA9685 servo driver.

Breadboard:

The photo above depicts the circuit we used for testing the ultrasonic sensors, the servos, the Bluetooth module, the motor shield, and the servo driver.

Charging Circuit:

For our charge control circuit, we chose to use the Black Menba 20A 12V/24V Solar Charge/ Panel Battery Controller. We chose this solar charge controller because our initial charge controller design proved to be inoperable after thorough testing.

For initial design, reference previous blog post Spring 2016 Pathfinder Charging Control Circuit

Check more on blog post Spring 2016 Pathfinder Solar Panels Implementation

Led Headlights:

For our L.E.D. headlights, we chose to use the 6 Piranha 5V Led Light Panel Board. For this decision, we had only two factors: price and brightness. These L.E.D.s proved to be very bright meeting our expectations and making sure we met one of our requirements of aiding the pathfinder with lighting.

For more information see blog post Spring 2016 Pathfinder: LED Headlights



Source Materials:

– 6 Piranha 5V Led Light Panel Board White Night Lights Lamp Super Bright:

http://www.ebay.com/itm/181941929073?_trksid=p2057872.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT

– Black Menba 20A 12V/24V Solar Charge/ Panel Battery Controller:

http://www.amazon.com/Black-Menba-Charge-Battery-Controller/dp/B012CHR3YY?ie=UTF8&psc=1&redirect=true&ref_=oh_aui_detailpage_o02_s01

– SMAKN® 16 Channel PWM/Servo Driver IIC interface-PCA9685 for arduino or Raspberry pi shield module servo shield:

http://www.amazon.com/SMAKN®-Channel-interface-PCA9685-arduino-Raspberry/dp/B012ES0HTY?ie=UTF8&psc=1&redirect=true&ref_=oh_aui_detailpage_o04_s00

– Spring 2016 Pathfinder: LED Headlights

http://arxterra.com/spring-2016-pathfinder-led-headlights/

– Spring 2016 Pathfinder Charging Control Circuit

http://arxterra.com/spring-2016-pathfinder-charging-control-circuit/
