Spring 2017 Preliminary Project Plan: Prosthetic Arm
The Robot Company | CEO Professor Gary Hill
Project Manager: Bianca Esquivel | Mission, Systems, and Test Engineer: Phuong Tran
Electronics and Control Engineer: Mikael Movsisyan | Manufacturing Engineer: Cedric Yannick Mbetga
Table of Contents
Prosthetic Arm Project WBS
by Bianca Esquivel: Project Manager
Work Breakdown Structure
This is a hierarchical breakdown of the work that is necessary to complete the project, i.e. building the prosthetic arm. This coincides with the Product Breakdown Structure (PBS) located in the Preliminary Design Document:
It also reflects the tasks assigned to each position in the company matrix.
WBS Diagram
Project Schedule
by Bianca Esquivel: Project Manager
Top Level Schedule
The Top Level Schedule was created in Project Libre, there is both a Spread Sheet and a Gantt Chart to exhibit the schedule from today (March 3rd, 2017) to the End of the Semester (May 19th, 2017). All the tasks listed in the Top Level Schedule reflect the tasks that need to be completed based off of the Work Breakdown Structure (WBS) provided above.
System/Subsystem Level Tasks
These are tasks that reflect the L2 Requirements located in a separate blog post. These are system and subsystem tasks that need to be completed to move the project forward.
Prosthetic Arm – L2 Requirements
Project Burndown
by Bianca Esquivel: Project Manager
BurnDown
System Resource Reports
by Phuong Tran: Mission, Systems, and Test Engineer

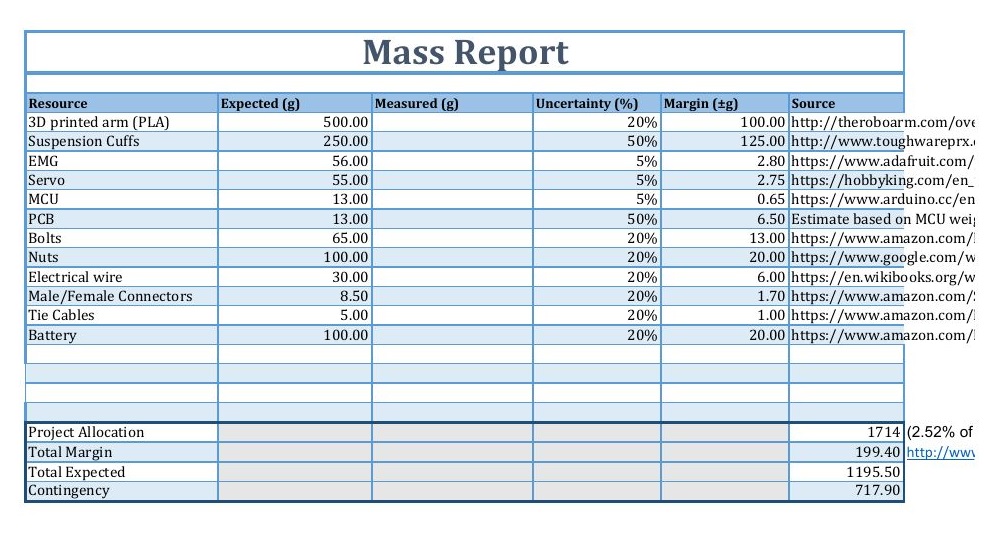

Resource Report: Mass
Resource Report: Power
Project Cost Estimate
by Phuong Tran: Mission, Systems, and Test Engineer

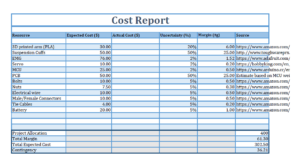

Resource Report: Cost
